SAP S/4HANA Extension

Installation

  • Go to Extensions → Marketplace → Search for extension SAP S/4HANA Extension → Click the Install action in "ACTIONS" menu

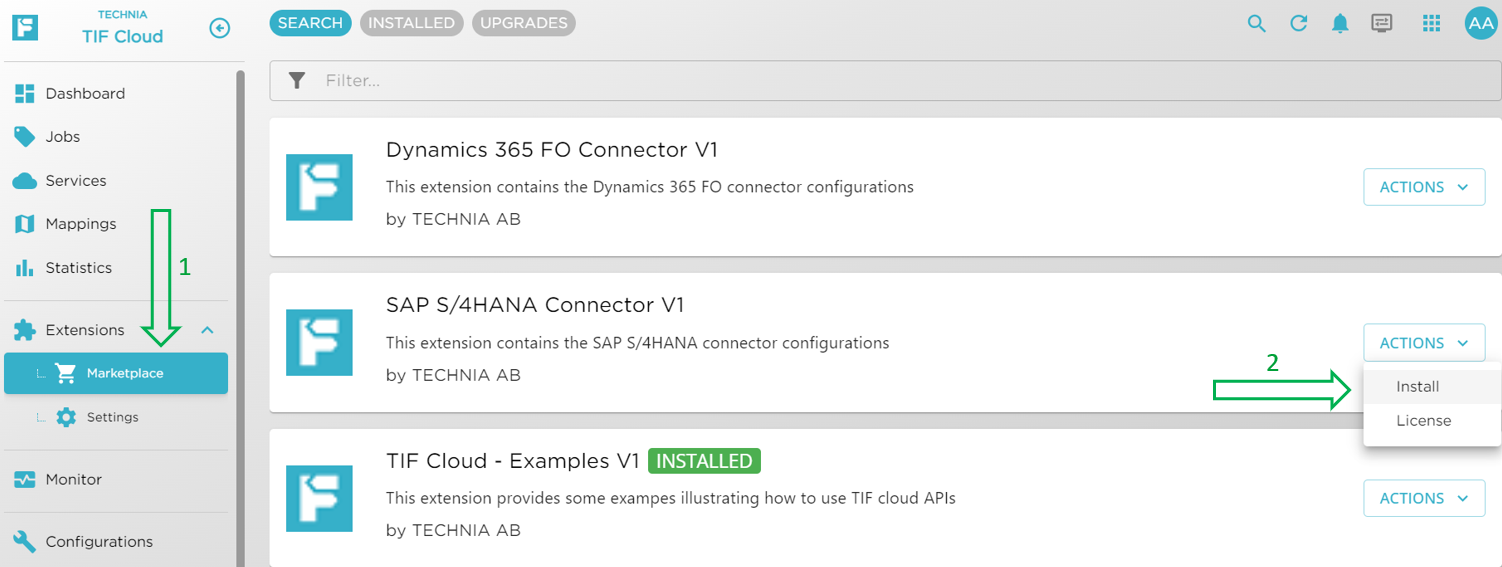

SAP S4HANA Market Place
Figure 1. SAP S/4HANA Extension at Marketplace
SAP S4HANA Extension Installation 1

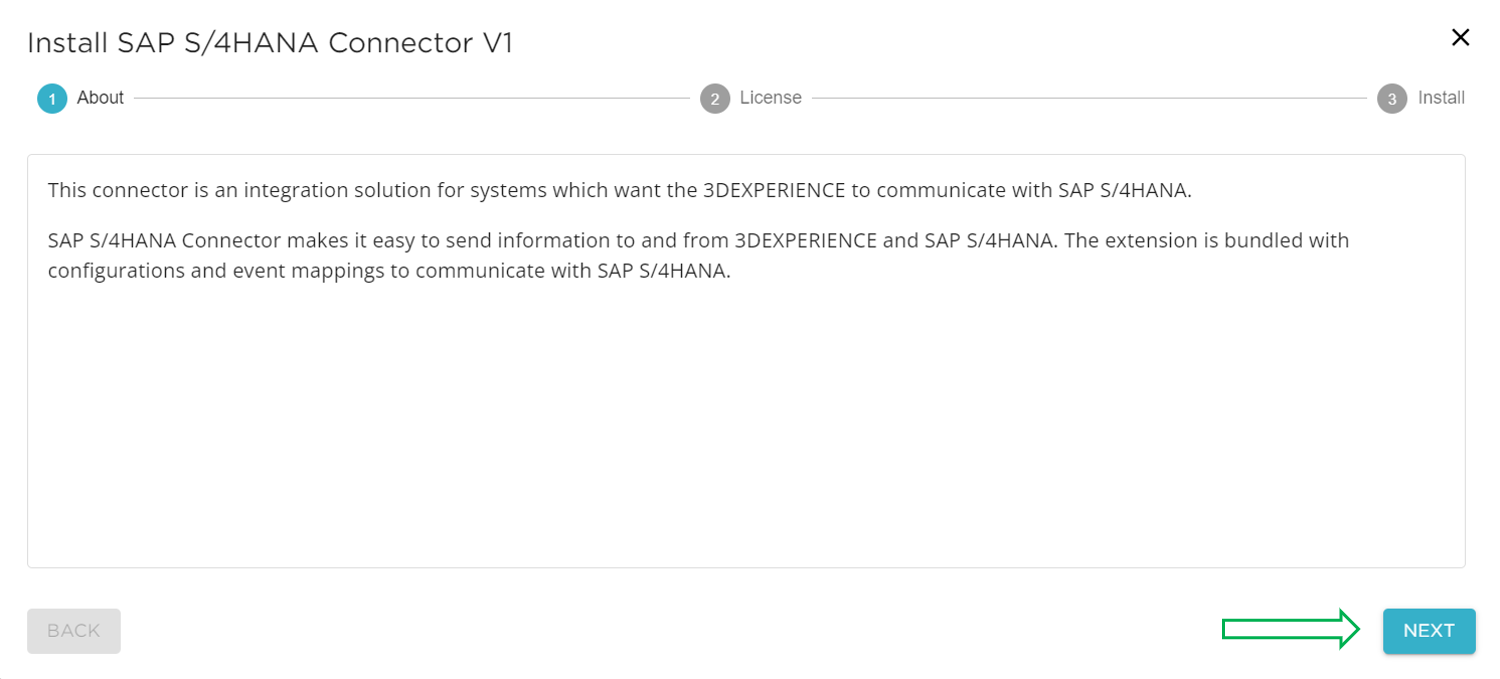

Figure 2. SAP S/4HANA Extension Installation : Step 1
SAP S4HANA Extension Installation 2

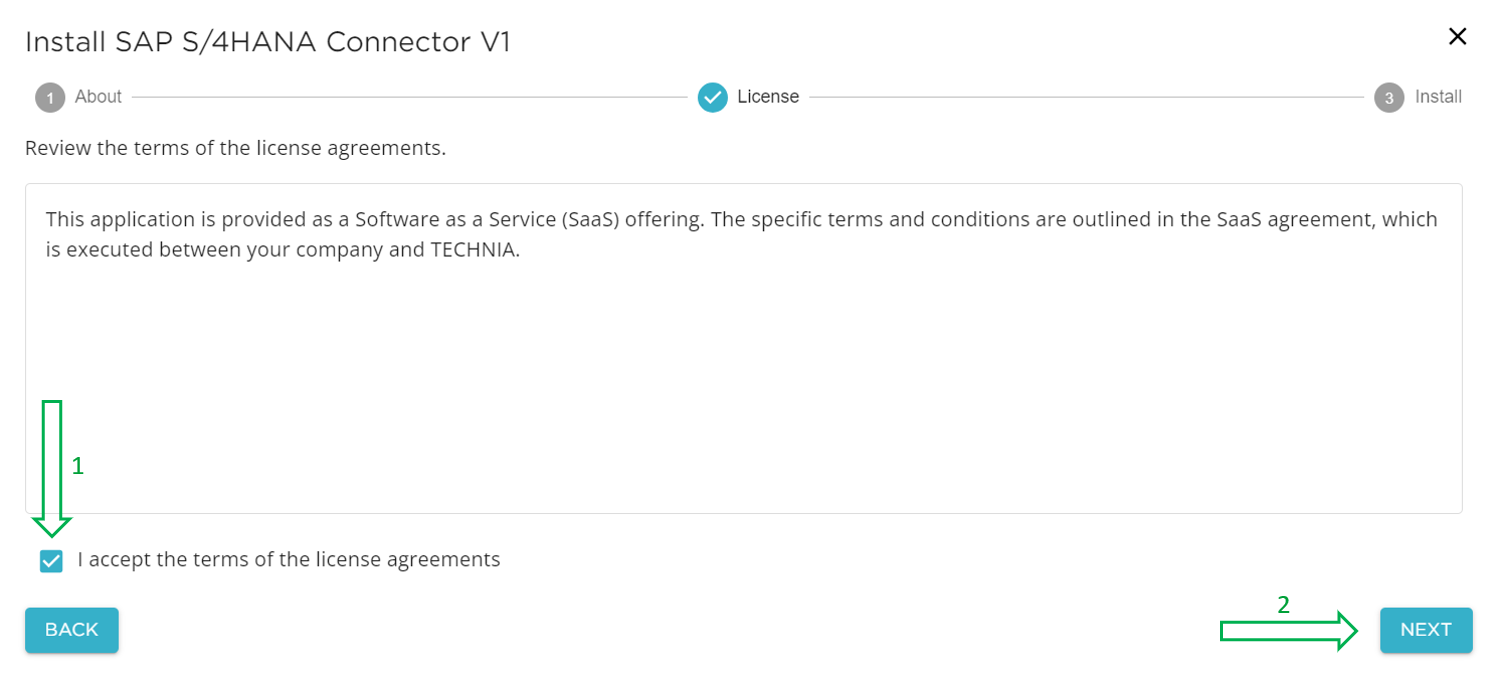

Figure 3. SAP S/4HANA Extension Installation : Step 2

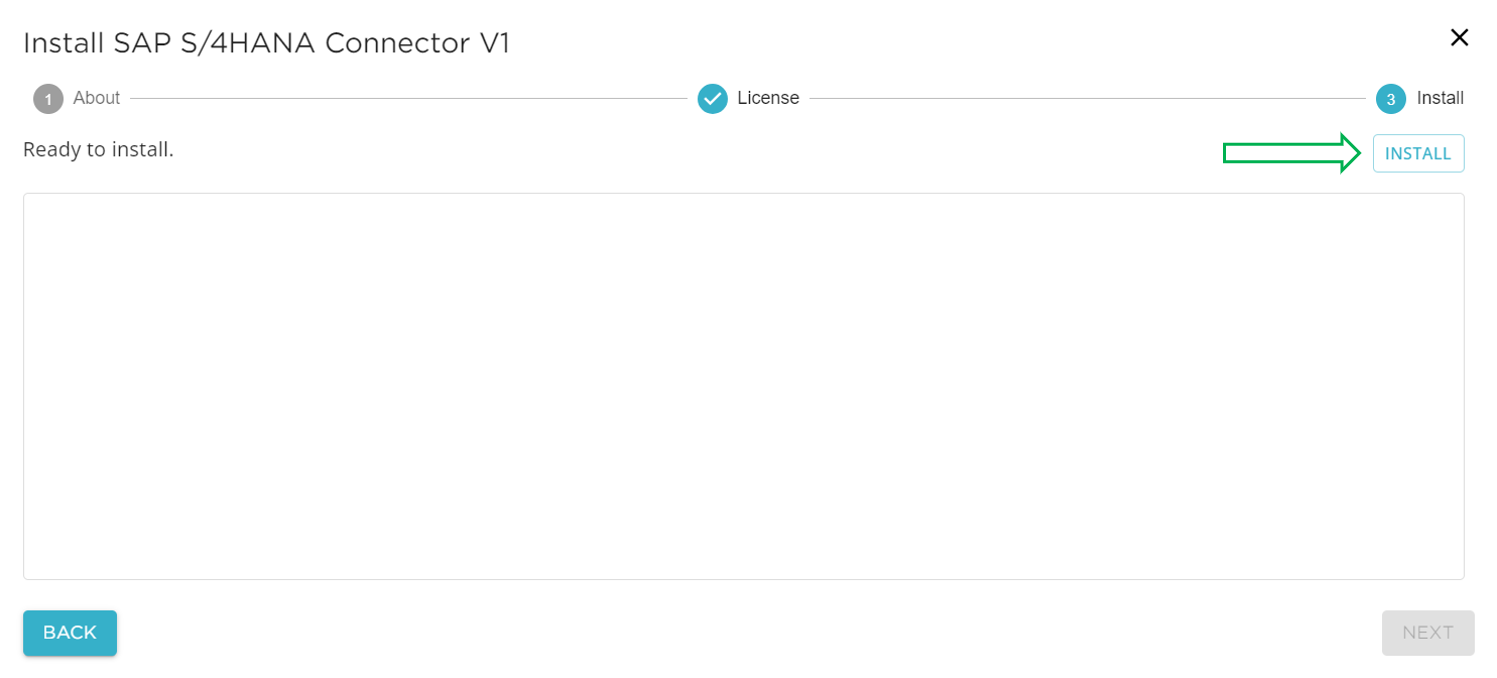

SAP S4HANA Extension Installation 3
Figure 4. SAP S/4HANA Extension Installation : Step 3
SAP S4HANA Extension Installation 4

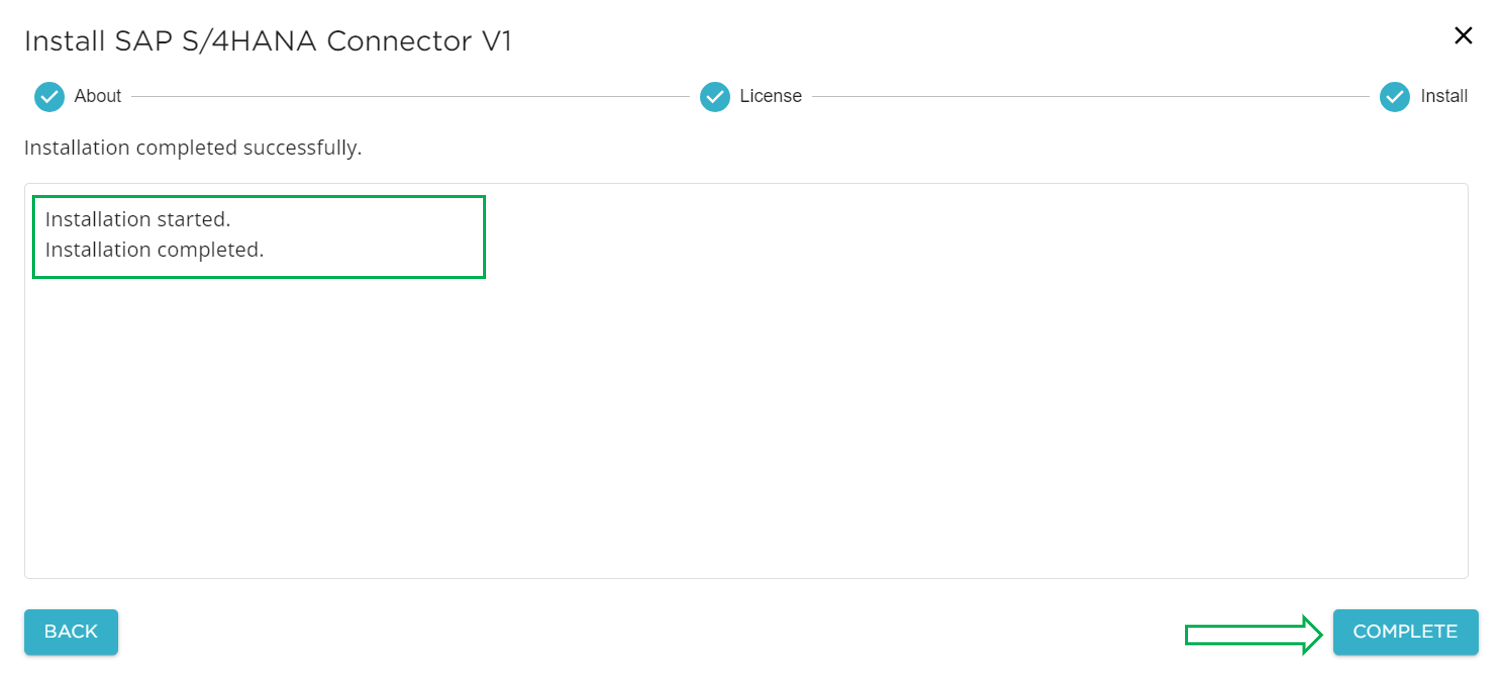

Figure 5. SAP S/4HANA Extension Installation : Step 4

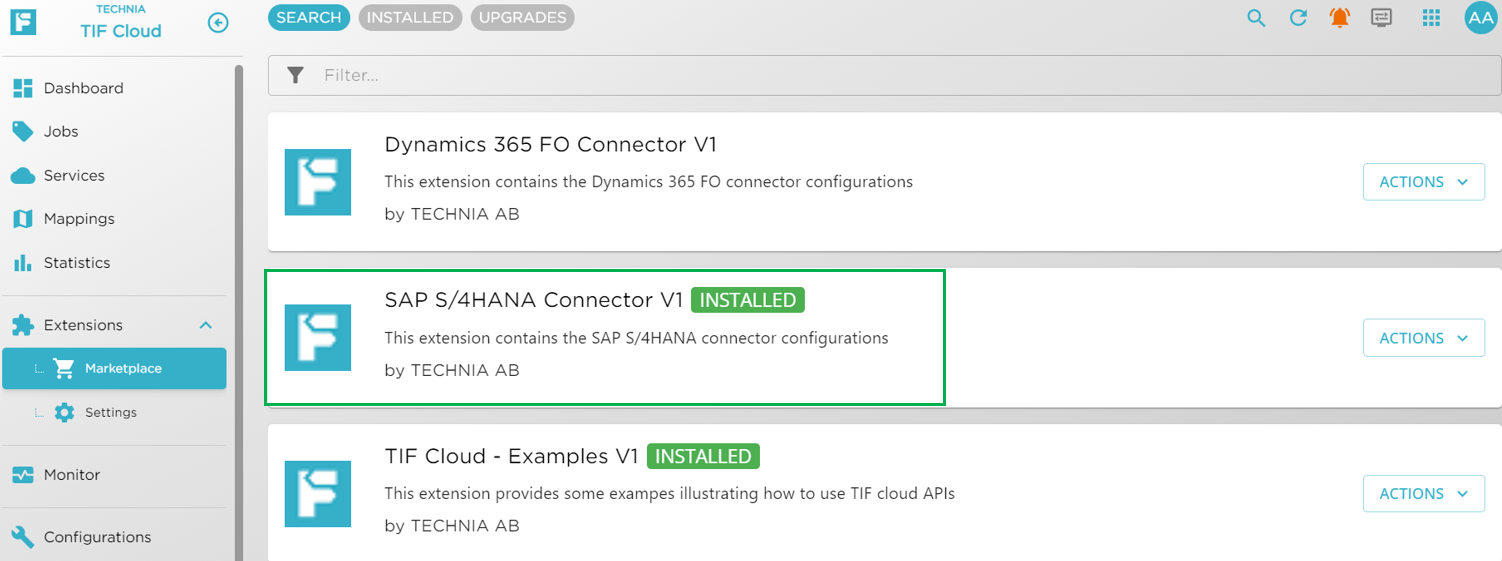

SAP S4HANA Extension Installation 5
Figure 6. SAP S/4HANA Extension Installation : Complete

Upgrade

  • Upgrading the extension can be done easily from the Marketplace itself.

    • Go to Extensions → Marketplace → Search for extension SAP S/4HANA Extension → Click the Upgrade action in "ACTIONS" menu

SAP S4HANA Extension Upgrade 1
Figure 1. SAP S/4HANA Extension Upgrade : Step 1

  • The changes available in the new version of the extension can be seen under the Changelog screen while upgrading.

SAP S4HANA Extension Upgrade 2
Figure 2. SAP S/4HANA Extension Upgrade : Change Log

  • Continue on the upgrade window similar to the installation steps.

Configurations

  • Configuration properties are pre-populated which user can modify as per the requirement.

  • There are different tabs like CONNECTION, DATA SETTINGS and ENDPOINTS from which the user can configure the properties to get SAP S/4HANA connector working.

  • Configure the following properties from Extensions → Settings.

Attribute Mapping

Attribute mapping feature helps the user to map 3DEXPERIENCE attributes with SAP S/4HANA attributes from UI. If there is no mapping found for the attribute then configured SAP S/4HANA Default Value will be used in the payload. Default attribute mappings configuration are shown below.

1. ATTRIBUTES

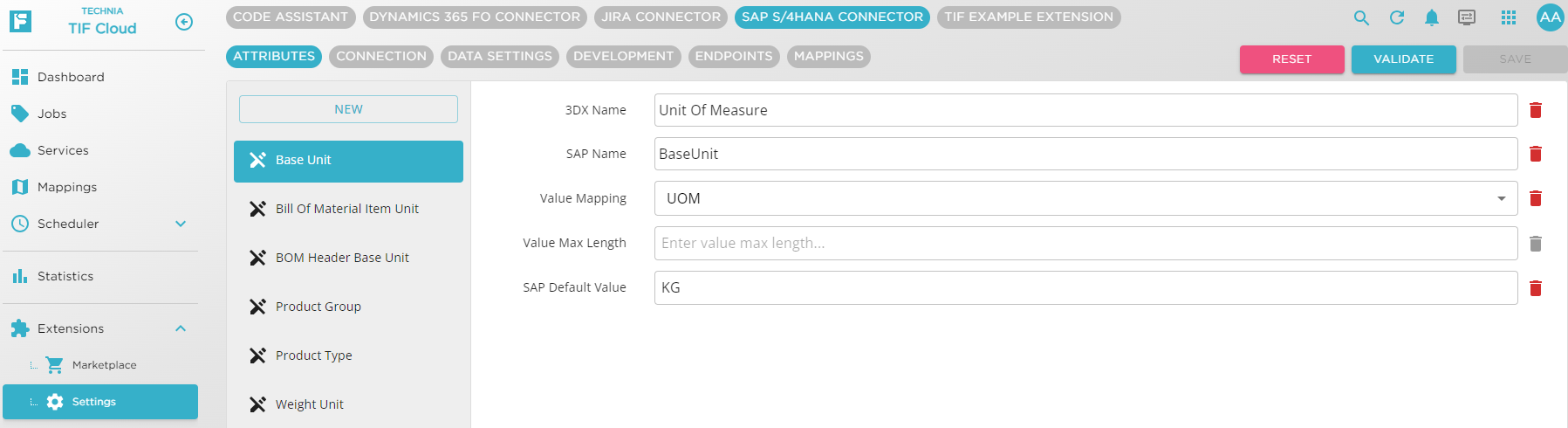

SAP S4HANA Extension Settings Attributes 1
ATTRIBUTES:Base Unit
3DX Name Unit Of Measure

SAP Name

BaseUnit

Value Mapping

UOM

Value Max Length

SAP Default Value

KG

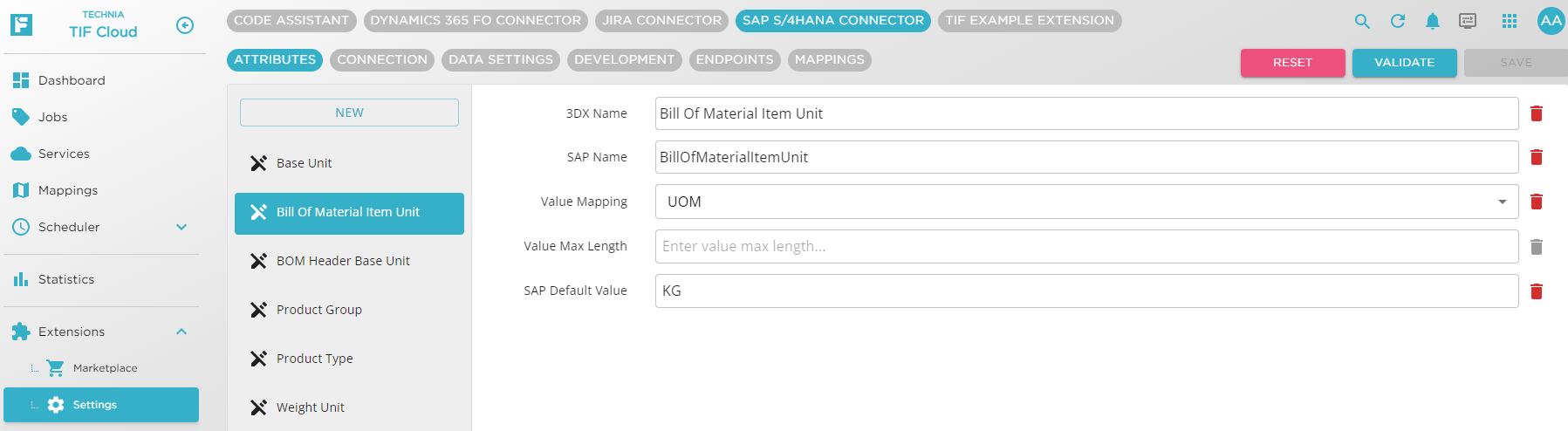

SAP S4HANA Extension Settings Attributes 2
ATTRIBUTES:Bill of Material Item Unit
3DX Name Bill of Material Item Unit

SAP Name

BillOfMaterialItemUnit

Value Mapping

UOM

Value Max Length

SAP Default Value

KG

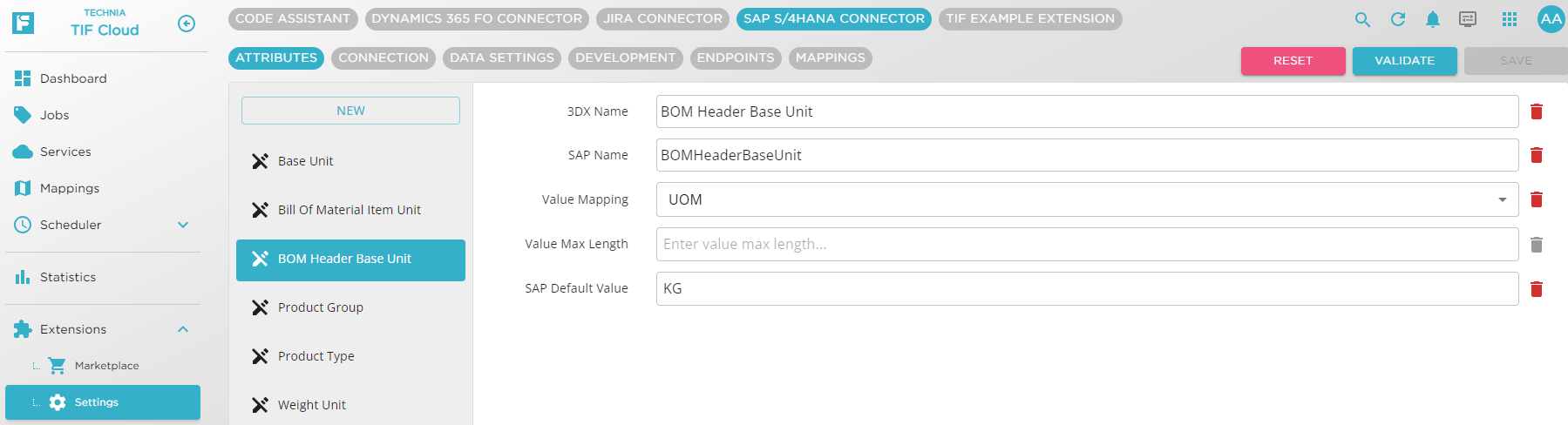

SAP S4HANA Extension Settings Attributes 3
ATTRIBUTES:BOM Header Base Unit
3DX Name BOM Header Base Unit

SAP Name

BOMHeaderBaseUnit

Value Mapping

UOM

Value Max Length

SAP Default Value

KG

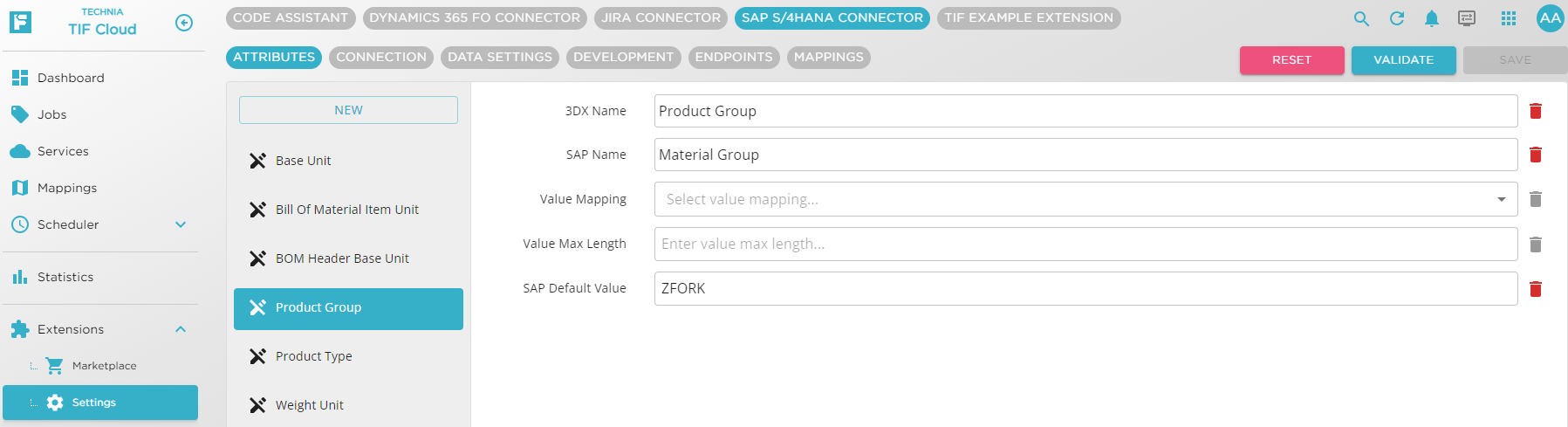

SAP S4HANA Extension Settings Attributes 4
ATTRIBUTES:Product Group
3DX Name Product Group

SAP Name

Material Group

Value Mapping

Value Max Length

SAP Default Value

ZFORK

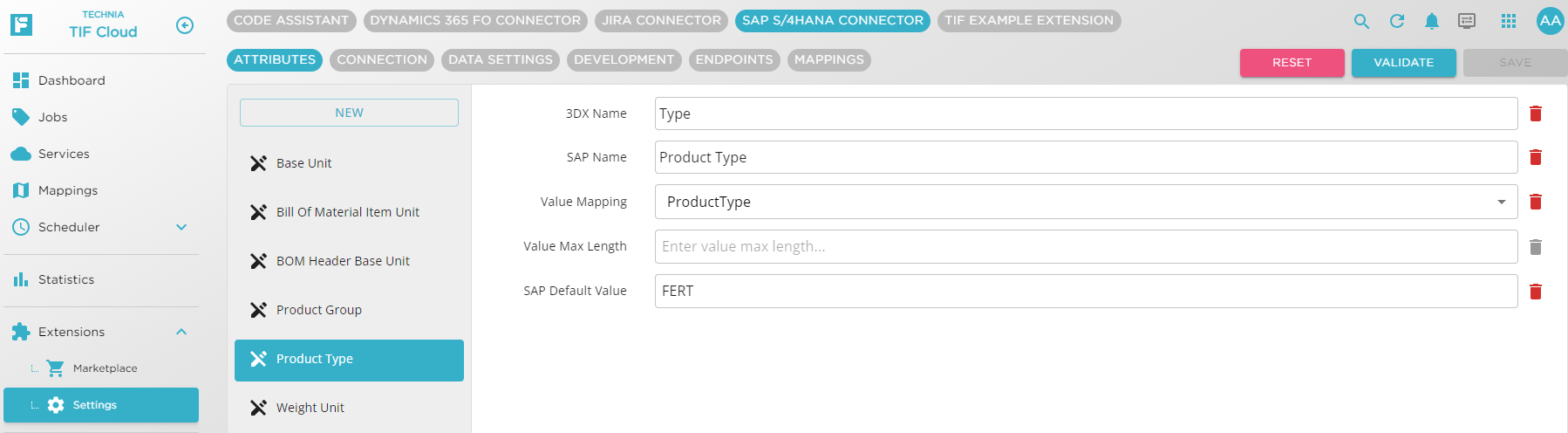

SAP S4HANA Extension Settings Attributes 5
ATTRIBUTES:Product Type
3DX Name Type

SAP Name

Product Type

Value Mapping

ProductType

Value Max Length

SAP Default Value

FERT

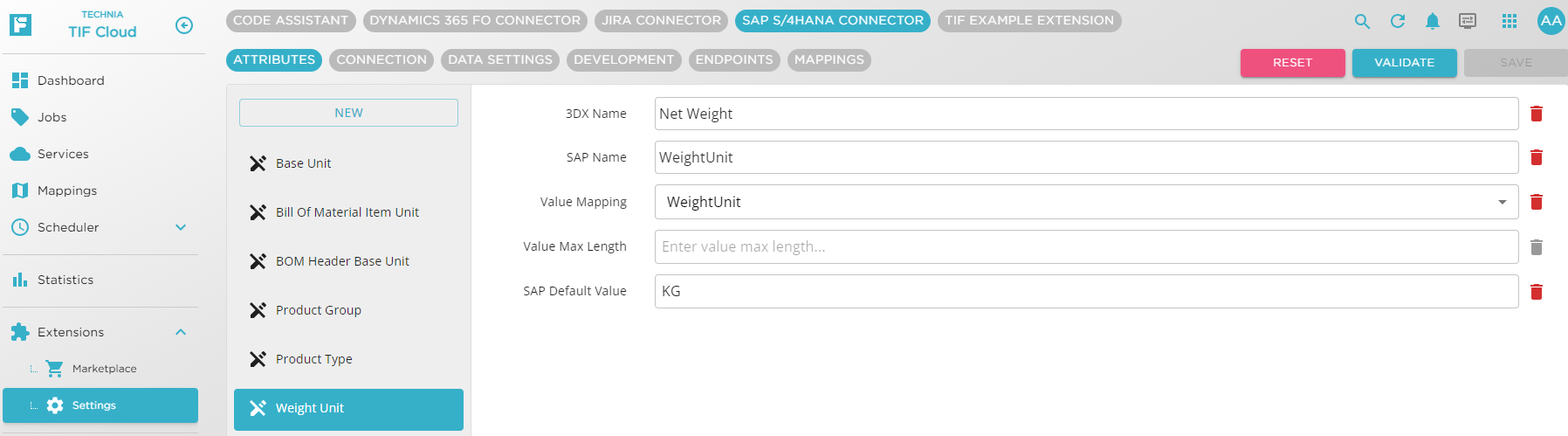

SAP S4HANA Extension Settings Attributes 6
ATTRIBUTES:Weight Unit
3DX Name Net Weight

SAP Name

WeightUnit

Value Mapping

WeightUnit

Value Max Length

SAP Default Value

KG

2. MAPPINGS

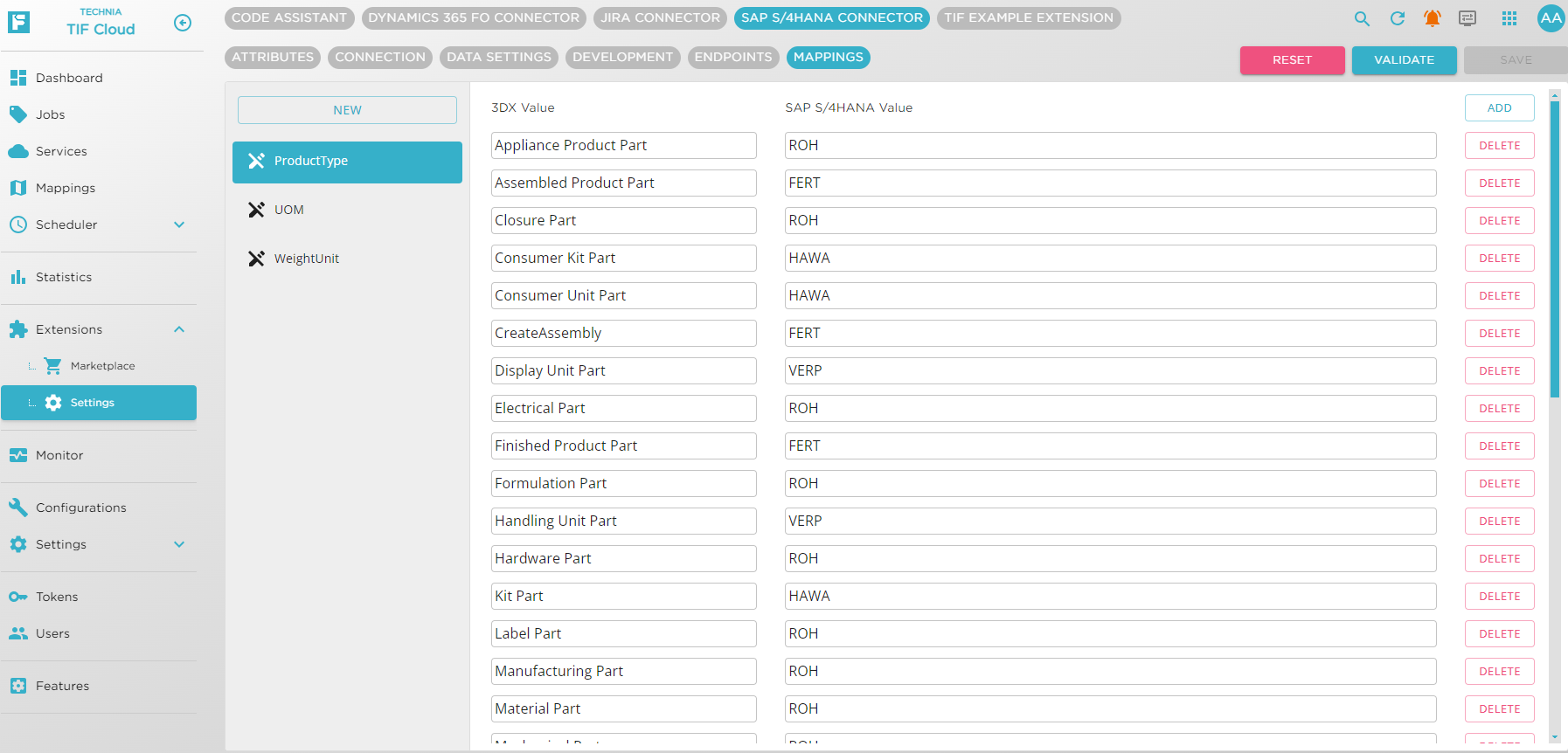

SAP S4HANA Extension Settings Mappings 1
MAPPINGS:ProductType
3DX Value SAP S/4HANA Value

Appliance Product Part

ROH

Assembled Product Part

FERT

Closure Part

ROH

Consumer Kit Part

HAWA

Consumer Unit Part

HAWA

CreateAssembly

FERT

Display Unit Part

VERP

Electrical Part

ROH

Finished Product Part

FERT

Formulation Part

ROH

Handling Unit Part

VERP

Hardware Part

ROH

Kit Part

HAWA

Label Part

ROH

Manufacturing Part

ROH

Material Part

ROH

Mechanical Part

ROH

Packaging Assembly Part

VERP

Packaging Component Part

VERP

Packaging Material Part

VERP

Pallet Part

VERP

Part

ROH

Phantom Part

ROH

Product Data Part

ROH

Promotional Item

UNBW

Raw Material

ROH

Semi-Finished Product Part

HALB

Software Part

ROH

Supplier Equivalent Part

ROH

Support Part

DIEN

Synthetic Part

ROH

Tool Part

FHMI

Trade Unit Part

HAWA

Transport Unit Part

VERP

VPMReference

ROH

XBOM Kit Part

HAWA
SAP S4HANA Extension Settings Mappings 2
MAPPINGS:UOM
3DX Value SAP S/4HANA Value

LB

LB

IN

''

MM

MM

MM2

MM2

MM3

MM3

YD

YD

Batch

%

%

PPM

PPM

MG

MG

CG

G

G

KG

KG

OZ

OZ

T

TO

ML

ML

CL

CL

GA

GAL

PT

PT

QT

QT

CONE

GR

GRO

ROLL

ROL

FT

FT

EA

EA

CM

CM

CM2

CM2

CM3

CCM

FT2

FT2

FT3

FT3

IN2

|2

IN3

|3

LITER

L

M

M

M2

M2

M3

M3
SAP S4HANA Extension Settings Mappings 3
MAPPINGS:WeightUnit
3DX Value SAP S/4HANA Value

g

G

kg

KG

cg

mg

MG

lb

LB

oz

OZ

T

TO

Connection

This tab allows user to configure the properties required for communication between 3DEXPERIENCE and SAP S/4HANA.

3. CONNECTION

SAP S4HANA Extension Settings Connection
Variable Description Example

  • 3DEXPERIENCE Agent id

3DEXPERIENCE Agent id for Extension

  • 3DEXPERIENCE Agent secret

3DEXPERIENCE Agent secret for Extension

  • Base URL to SAP

Base url of SAP S/4HANA

https://<host address>

  • SAP Client ID

Client id of SAP S/4HANA

500

  • SAP S/4HANA Login name

User name to login to SAP S/4HANA

  • SAP S/4HANA Password

Password for the user name

Data Settings

This tab allows user to configure the properties that help in generating payload.

4. DATA SETTINGS

The below shown values are from a demo point of view.

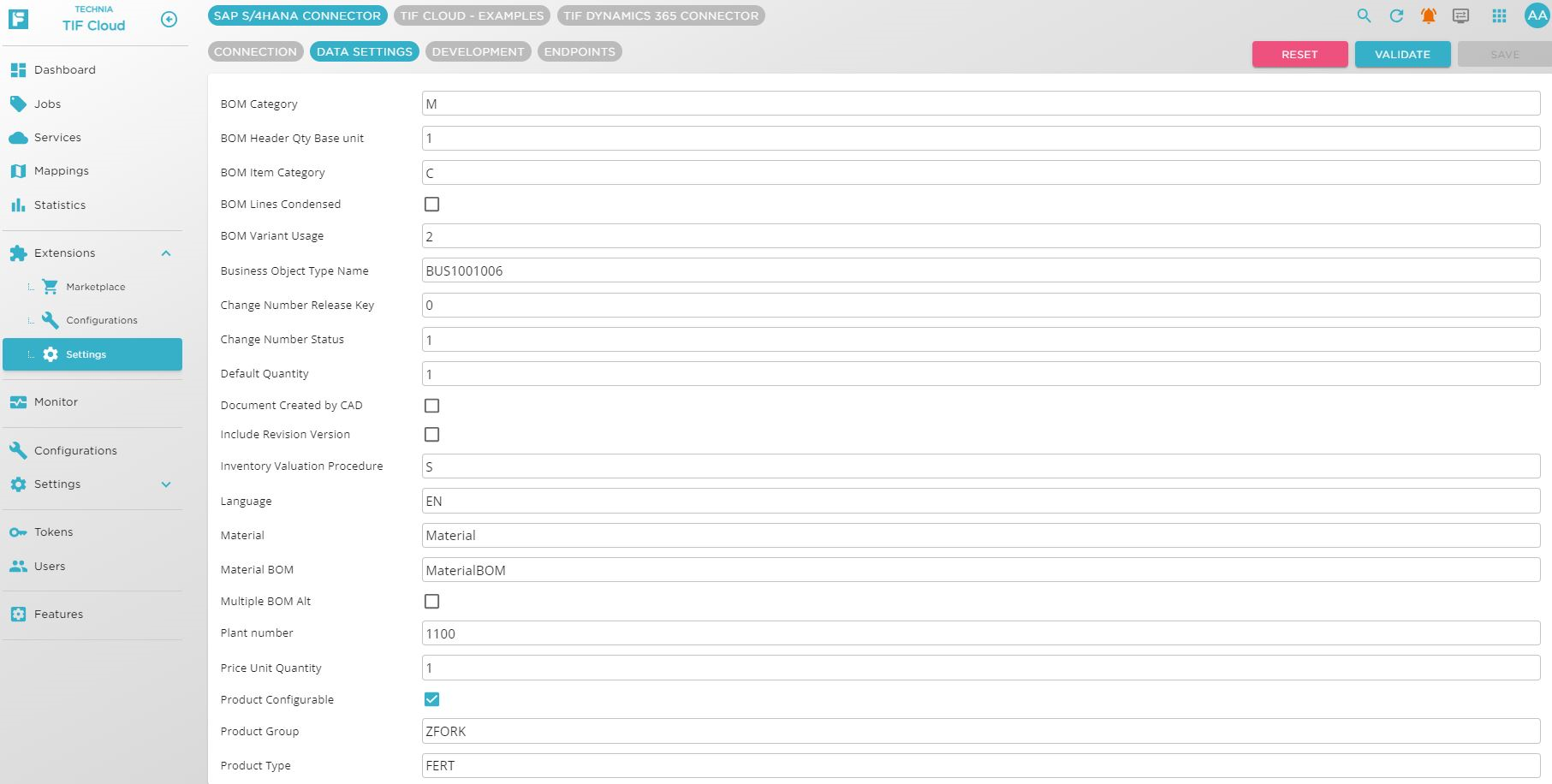

SAP S4HANA Extension Settings Data Settings
Variable Description Example

  • 3DSpace tenant

Url for 3DSpace tenant

https://<host address>

  • Attachment type code for document

Mode of sending document to SAP S/4HANA

URL / FILE

  • BOM Category

-

M

  • BOM Header Qty Baseunit

-

1

  • BOM Item Category

-

C

  • BOM Line Condensed

-

true

  • BOM Variant Usage

1 = Engineering BOM, Default = 1

1

  • Business Object Type Name

BUS1001006

  • Change Number Release Key

-

0

  • Change Number Status

-

1

  • Convert document to PDF

Convert Microsoft Office documents to PDF format before transmitting them as files to SAP S/4HANA.

false

  • Default Quantity

Single item quantity

1

  • Document Created by CAD

-

false

  • File Download URL

URL to download file when attachment type code is URL

${sap.s4hana.3dspace.tenant}/#app:ENXWDOC_AP/content:X3DContentId=

  • Include Revision Version

Example; A.1

false

  • Inventory Valuation Procedure

-

S

  • Language

EN = English

EN

  • Material

SAP Object Type

Material

  • Material BOM

SAP Object Type

MaterialBOM

  • MBOM Variant Usage

2 = Production BOM, Default = 2

2

  • Multiple BOM Alt

false

  • Price Unit Quantity

-

1

  • Plant number

-

1100

  • Product Configurable

-

true

  • Valuation class for FERT

Valuation class for product type FERT at SAP S/4HANA

7920

  • Valuation class for ROH

Valuation class for product type ROH at SAP S/4HANA

3000

5. DEVELOPMENT

As of release V1 , the DEVELOPMENT tab is meant for development environment. It is used to generate Item numbers and Change Action numbers as required by the destination system (SAP S/4HANA).

Endpoints

This tab allows user to configure the endpoints where payload needs to be sent at SAP S/4HANA.

6. ENDPOINTS

SAP S4HANA Extension Settings Endpoints
Variable Description Example

  • BOM URI

SAP S/4HANA API used to send payload for Send BOM & Send BOM with CA use case

sap/API_BILL_OF_MATERIAL_SRV;v=2/MaterialBOM

  • CA URI

SAP S/4HANA API used to send payload for Send CA use case

sap/opu/odata/sap/API_CHANGEMASTER;v=2/A_ChangeMaster

  • Item Revise URI

SAP S/4HANA API used to send payload for Revise Engineering Item use case

sap/opu/odata/sap/API_PRODUCT_SRV/A_Product('<ITEM_NAME>')

  • Material CA URI

SAP S/4HANA API used to send payload for Associate CA use case

sap/opu/odata/sap/API_CHANGEMASTER; v=2/A_ChangeMaster('<CA_NUMBER>')/to_ChangeMstrObMgReMaterial

  • Product URI

SAP S/4HANA API used to send payload for Send Engineering Item use case

sap/opu/odata/sap/API_PRODUCT_SRV/A_Product

  • Send Attachment as Link URI

SAP S/4HANA API used to send attachment as link for Send Document use case

/sap/opu/odata/sap/API_CV_ATTACHMENT_SRV/CreateUrlAsAttachment?MIMEType='${MIME_TYPE}'&UrlDescription='${URL_DESC}'&Url='${DOC_LINK}'&BusinessObjectTypeName='${BUS_OBJ_TYPE}'&LinkedSAPObjectKey='${SAP_OBJ_KEY}'&SemanticObject=''

  • Send Attachment URI

SAP S/4HANA API used to send attachment for Send Document use case

sap/opu/odata/sap/API_CV_ATTACHMENT_SRV/AttachmentContentSet

  • Send Description URI

SAP S/4HANA API used to payload for Send Product Description use case

/sap/opu/odata/sap/API_PRODUCT_SRV/A_ProductDescription(Product='${ITEM_NAME}',Language='${LANGUAGE}')

  • Send Basic Text URI

SAP S/4HANA API used to payload for Send Basic Text use case

/sap/opu/odata/sap/API_PRODUCT_SRV/A_ProductBasicText(Product='${ITEM_NAME}',Language='${LANGUAGE}')

  • Send Attributes URI

SAP S/4HANA API used to send payload for syncing attributes (Net Weight, Weight Unit) for Send Engineering Material Attributes use case

/sap/opu/odata/sap/API_PRODUCT_SRV/A_Product('${ITEM_NAME}')

  • Token URI Endpoint

SAP S/4HANA API to fetch the token

sap/opu/odata/sap/API_PRODUCT_SRV/

  • SAP S/4HANA service is available out of the box. This SAP S/4HANA service is mapped with the events under event mapping.

  • As of release 2.0.0 , additional services are available out of the box.

    • SAP S/4HANA Release

    • SAP S/4HANA Revise

    • A Service corresponds to a job queue. Every event mapping needs to specify to which service it belongs. A service can be configured to run its jobs in sequence OR parallel execution. Either create a single service to handle all the events or create separate services for each event mapping.

Event Mapping

  • Need to enable what events needs to be published from the DS tenant using Event Publishing app.

    • Event mapping holds the information about which use-case needs to be executed when the event is received. It is a binding between the event and job-request.

DS Event Publishing

Example for configured events publishing are as follows
Engineering item → Created, Status Changed, Versioned, etc…​

  • Event mapping need to be created so that required use case should get executed on receiving the event from DS tenant. While creating the events we need to provide the details like

    • Service name

    • Agent

    • Event class and its type

    • Configuration to be invoked

  • Following event mapping is available out of the box.

Events

Event Categories & Types
Created Status Changed Versioned Computed Connected Disconnected

⊟ Event Category :
    Collaborative Spaces Control

├ 🗎 Document

├ 🧊 Engineering Item

├ Manufacturing Item icon Manufacturing Item






🔵

🔵

🔵



🔵

🔵

⊟ Event Category : Change
    Process

├ 🄲🄰 Change Action




🔵

🔵



  • SAP-S/4HANA-Create-Eng-Material-Send-Eng-Material - gets invoked on creation of an Engineering item in DS tenant.

  • SAP-S/4HANA-Send-CA - gets invoked on creation of Change Action in DS tenant.

  • SAP-S/4HANA-Send-BOM - gets invoked on release of an Engineering item in DS tenant.

  • SAP-S/4HANA-Release-CA-Send-BOM - gets invoked on release of a Change Action in DS tenant.

  • SAP-S/4HANA-Revise-Engineering-Item - gets invoked on creation of revision of an Engineering item in DS tenant.

  • SAP-S/4HANA-Send-Document - gets invoked on release of an Engineering item in DS tenant.

  • SAP-S/4HANA-Sync-Attributes - gets invoked on release of an Engineering item in DS tenant.

  • SAP-S/4HANA-Send-Description - gets invoked on creation of revision of an Engineering item in DS tenant.

  • SAP-S/4HANA-Send-Basic-Text - gets invoked on creation of revision of an Engineering item in DS tenant.

  • SAP-S/4HANA-Send-Manufacturing-Item - gets invoked on creation of a Manufacturing item in DS tenant.

  • SAP-S/4HANA-Send-MBOM - gets invoked on release of a Manufacturing item in DS tenant.

SAP S/4HANA use cases use token to connect to the destination url for sending the payload.

In general, any SAP S/4HANA use case, use the below javascript classes.

Component Details

1. Use case invoker

It invokes the processor of the specific use case. The invoker is also responsible to pass in the optional set of properties to the use case processor

2. Processor

It has the logic to fetch the data, build the payload and send it to SAP S/4HANA using the Destination Handler.

3. Token Resolver

It fetches the authentication token by connecting to the corresponding SAP S/4HANA url

4. Destination Handler

It has the logic to connect to the SAP S/4HANA urls by performing necessary actions and send the payload.

5. Logger

Logs the details of the items being accessed in the use case.

6. Helper

It has the methods to build the payload for SAP S/4HANA.

7. Util

It has the utility methods that helps to transform the payload data.
