SAP S/4HANA Extension

Installation

Go to Extensions → Marketplace → Search for extension SAP S/4HANA Extension → Click the Install action in "ACTIONS" menu

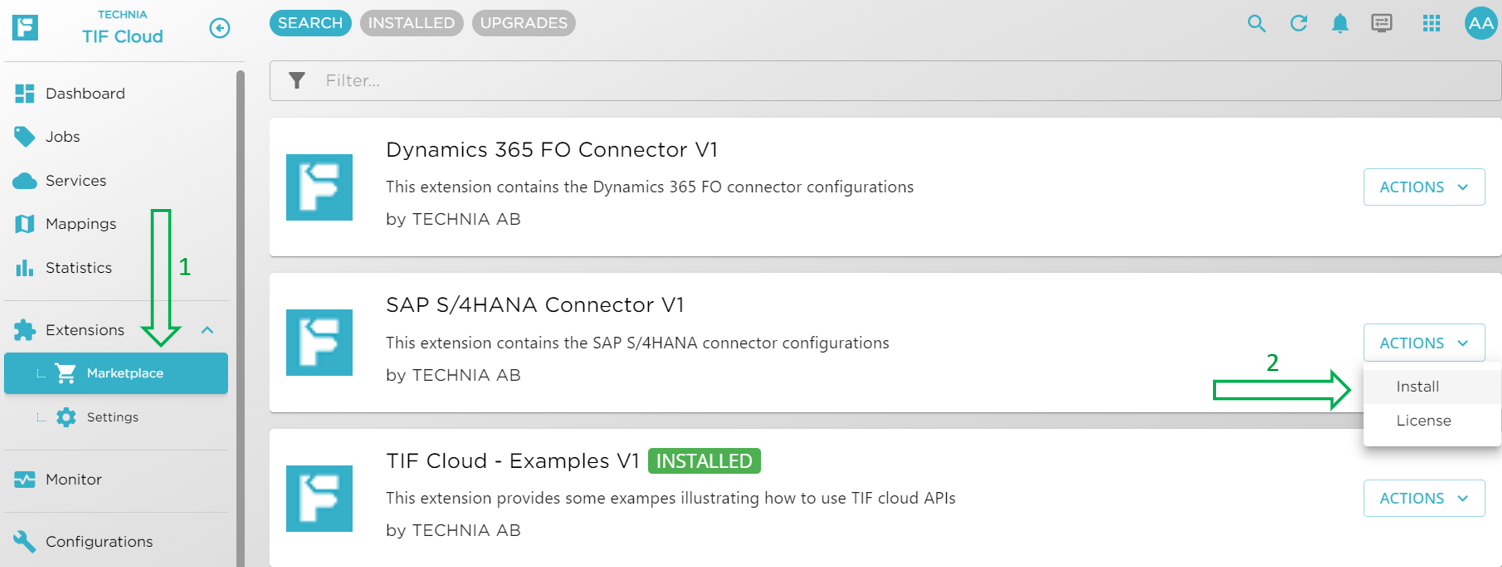

Figure 1. SAP S/4HANA Extension at Marketplace

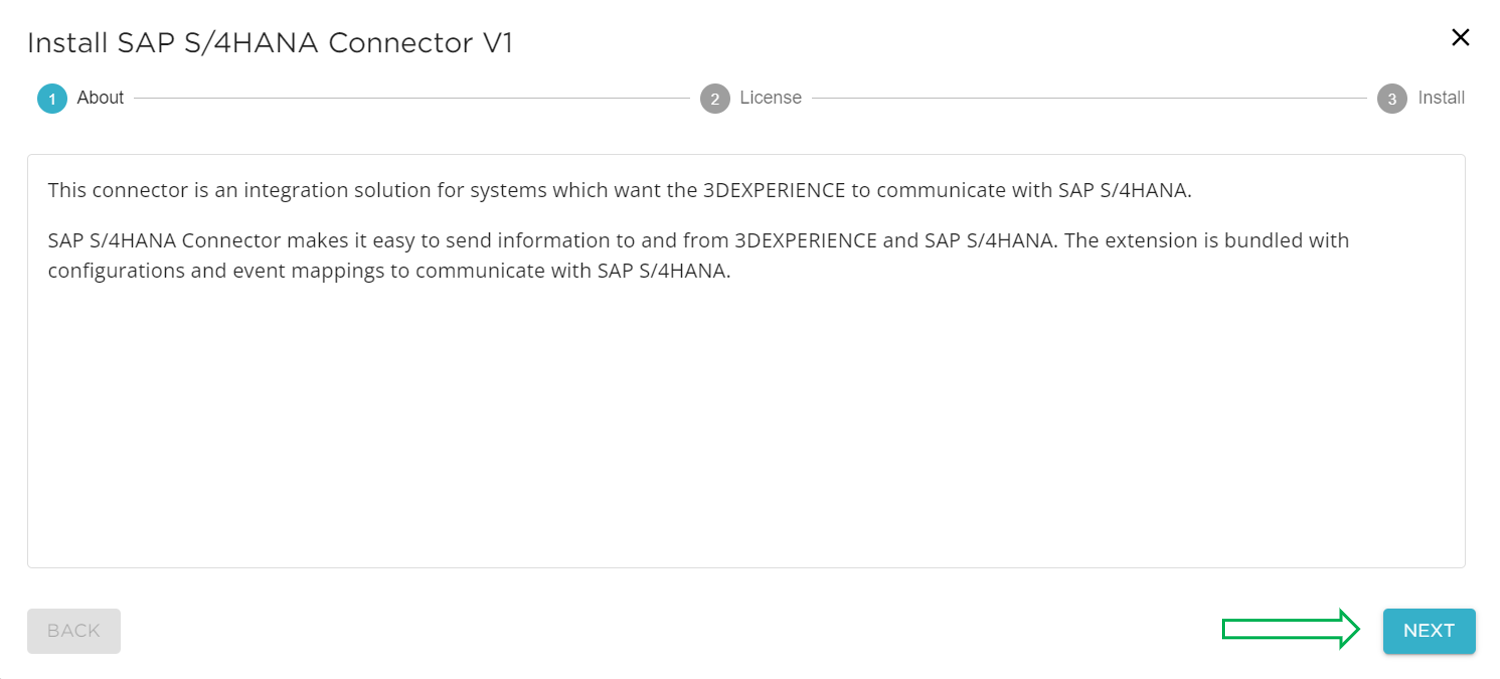

Figure 2. SAP S/4HANA Extension Installation : Step 1

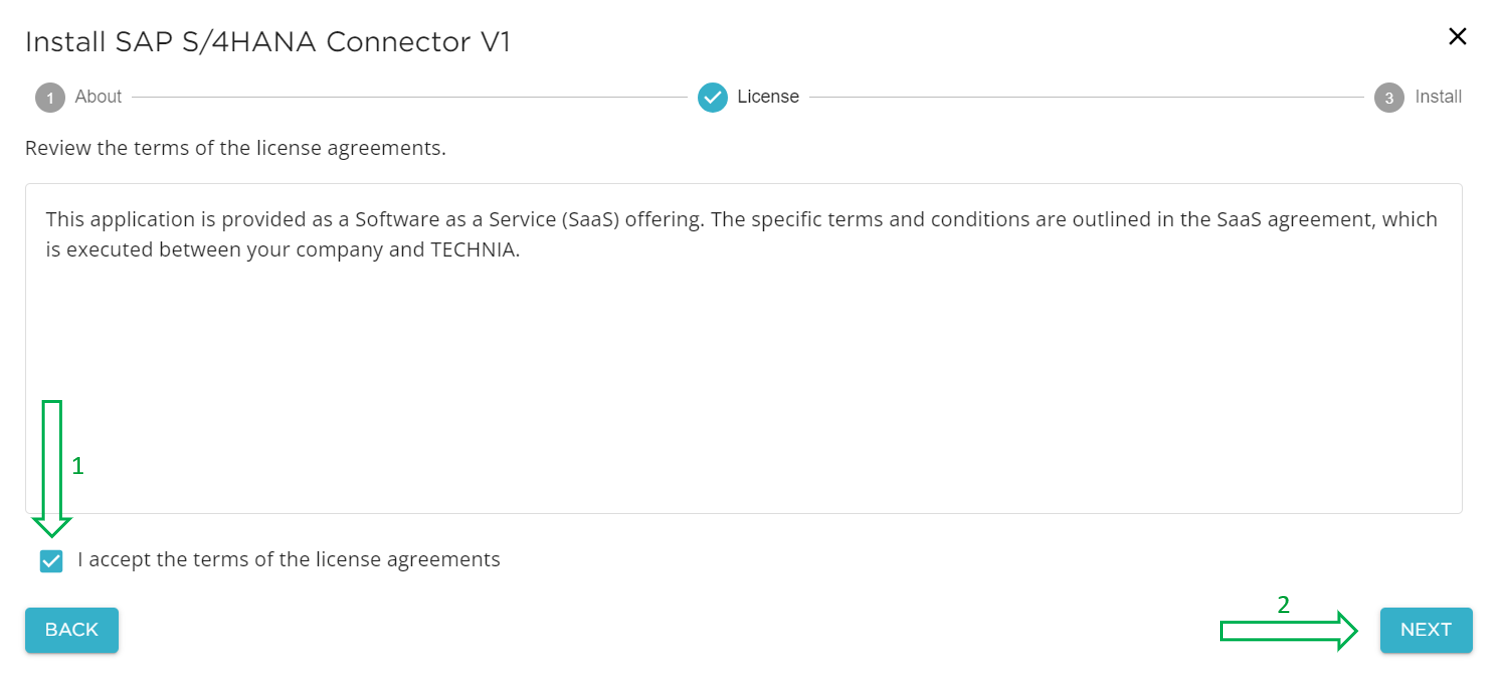

Figure 3. SAP S/4HANA Extension Installation : Step 2

Figure 4. SAP S/4HANA Extension Installation : Step 3

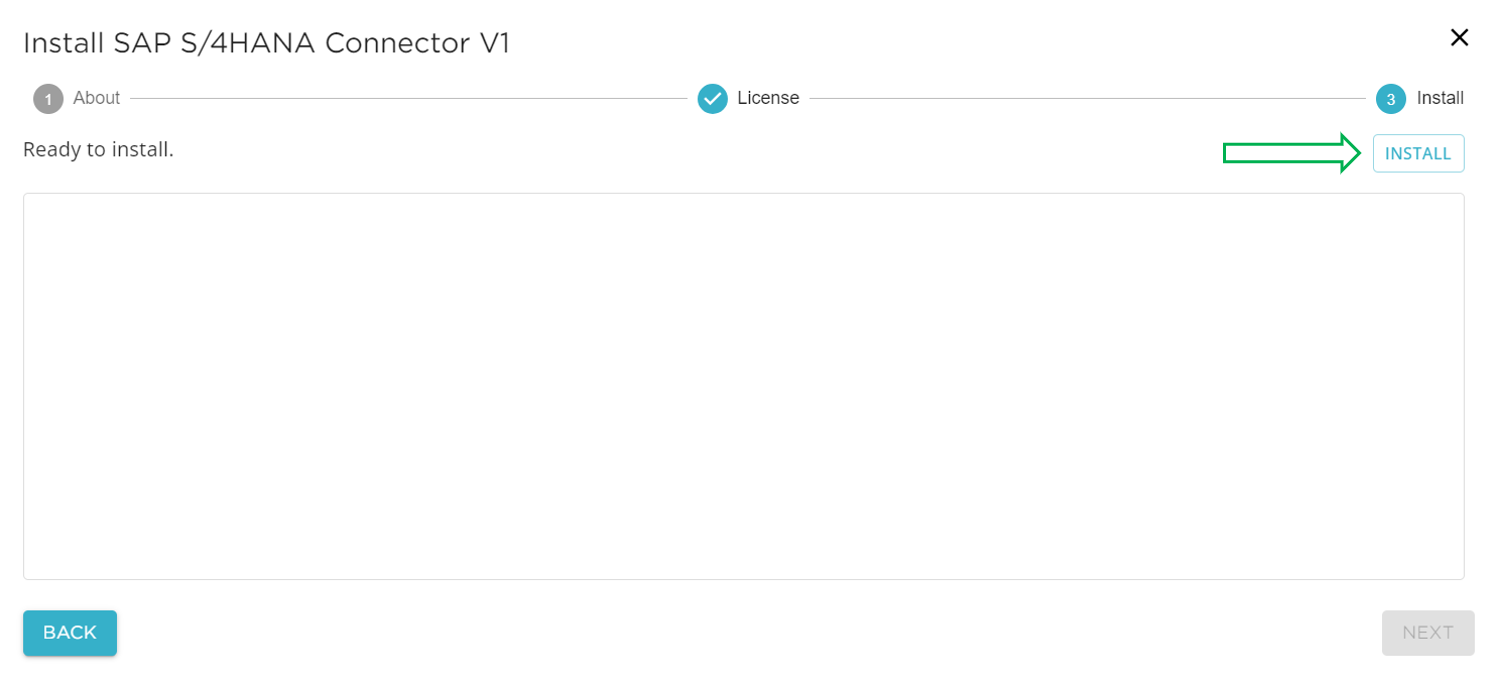

Figure 5. SAP S/4HANA Extension Installation : Step 4

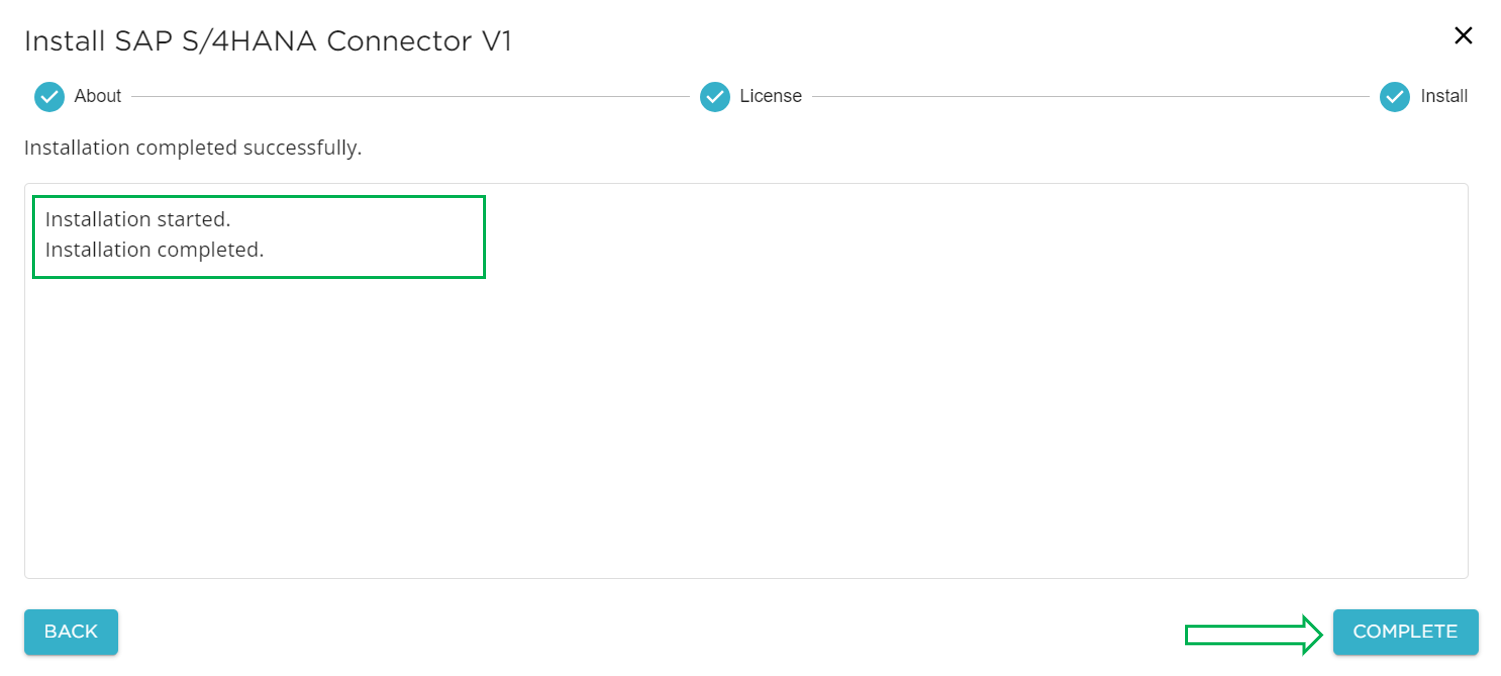

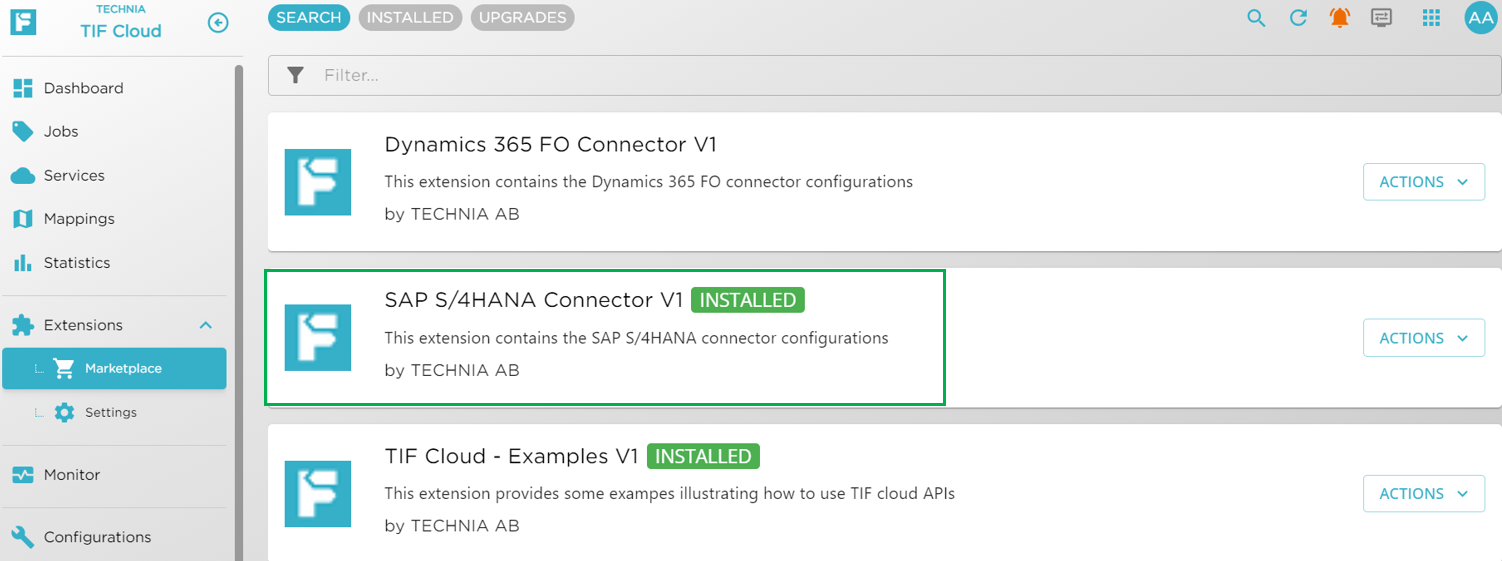

Figure 6. SAP S/4HANA Extension Installation : Complete

Upgrade

Upgrading the extension can be done easily from the Marketplace itself.
- Go to Extensions → Marketplace → Search for extension SAP S/4HANA Extension → Click the Upgrade action in "ACTIONS" menu

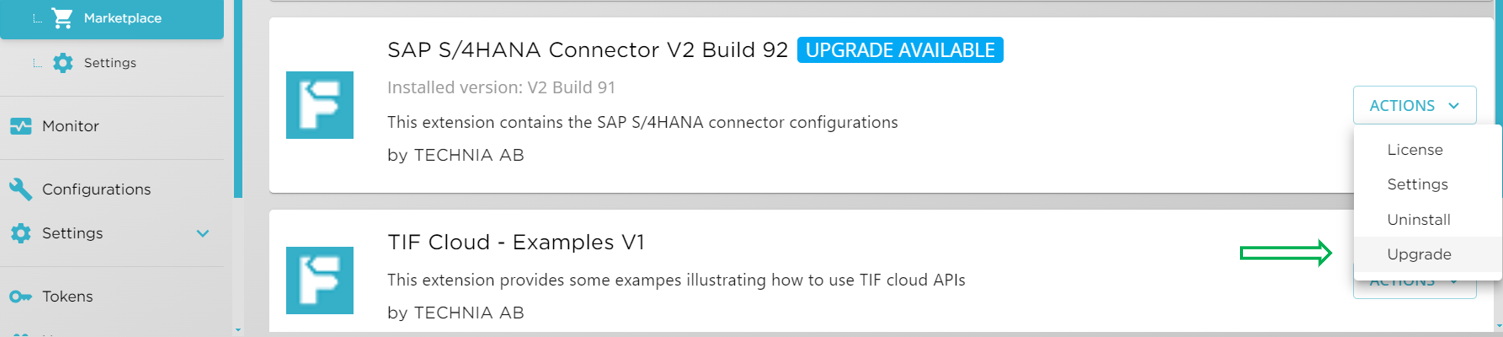

Figure 1. SAP S/4HANA Extension Upgrade : Step 1

The changes available in the new version of the extension can be seen under the Changelog screen while upgrading.

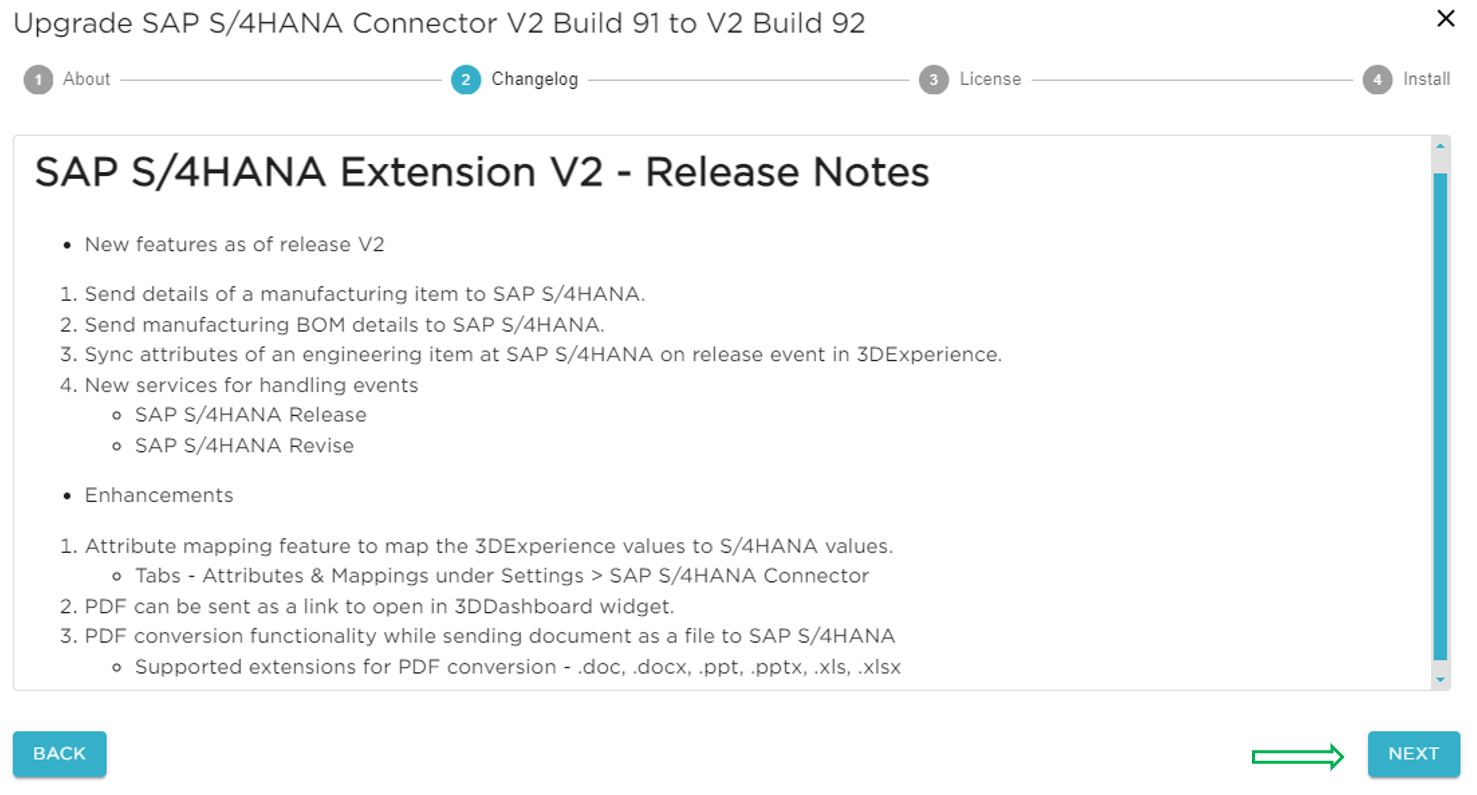

Figure 2. SAP S/4HANA Extension Upgrade : Change Log

Continue on the upgrade window similar to the installation steps.

Configurations

Configuration properties are pre-populated which user can modify as per the requirement.
There are different tabs like CONNECTION, DATA SETTINGS and ENDPOINTS from which the user can configure the properties to get SAP S/4HANA connector working.

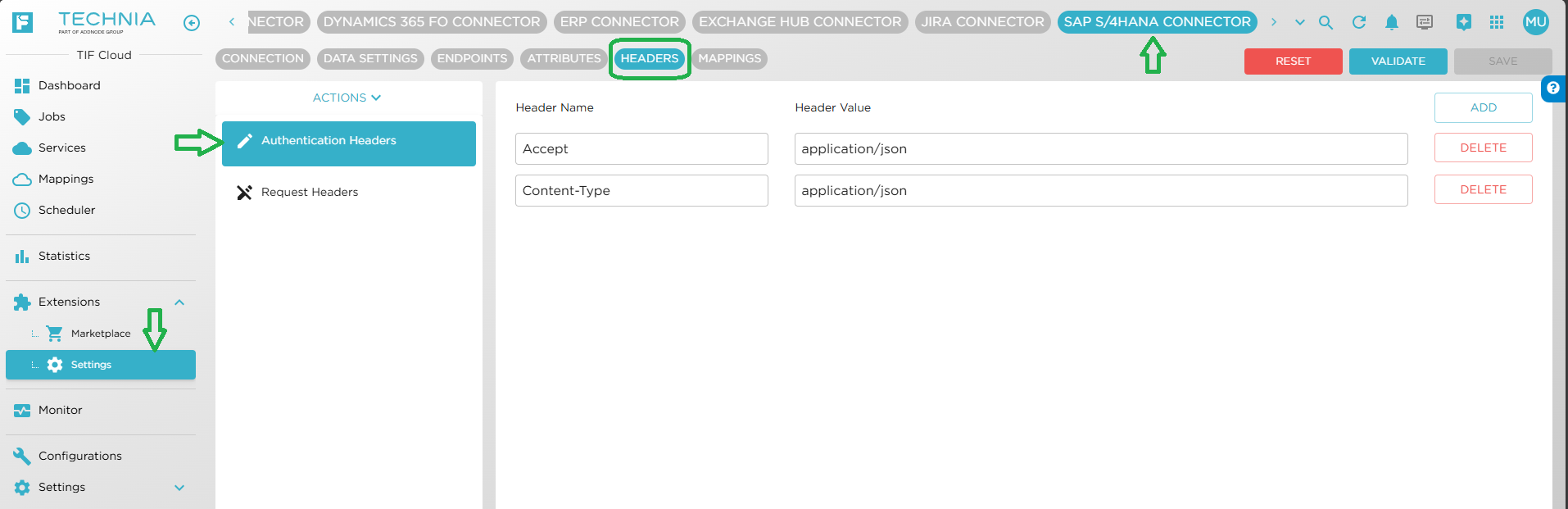

Configure the following properties from Extensions → Settings.

Attribute Mapping

Attribute mapping feature helps the user to map 3DEXPERIENCE attributes with SAP S/4HANA attributes from UI. If there is no mapping found for the attribute then configured SAP S/4HANA Default Value will be used in the payload. Default attribute mappings configuration are shown below.

1. ATTRIBUTES

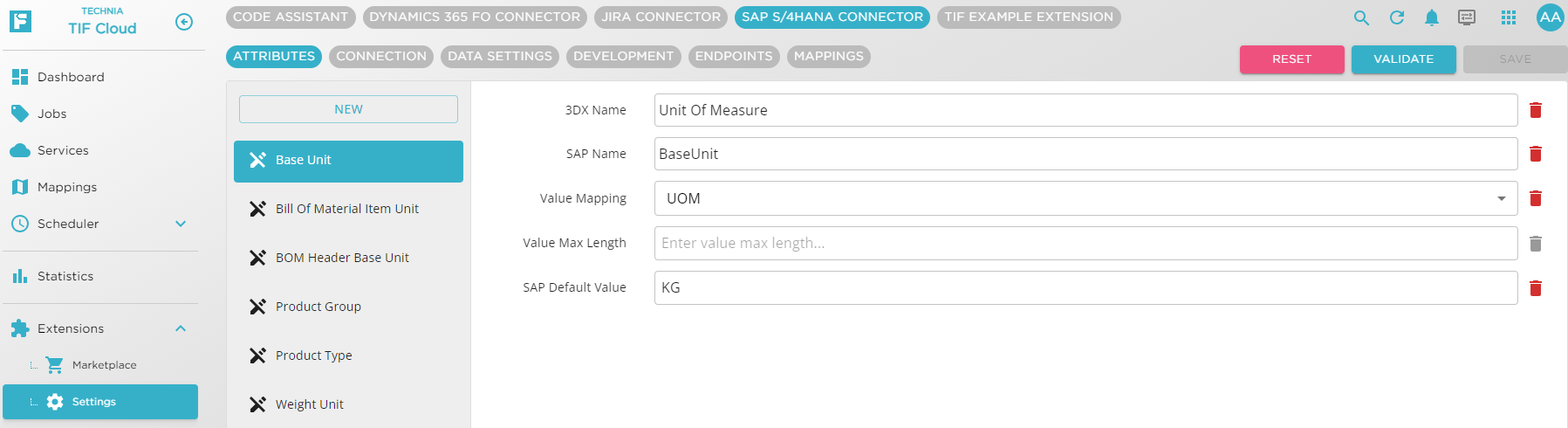

SAP S4HANA Extension Settings Attributes 1

ATTRIBUTES:Base Unit
3DX Name	Unit Of Measure
SAP Name	BaseUnit
Value Mapping	UOM
Value Max Length
SAP Default Value	KG

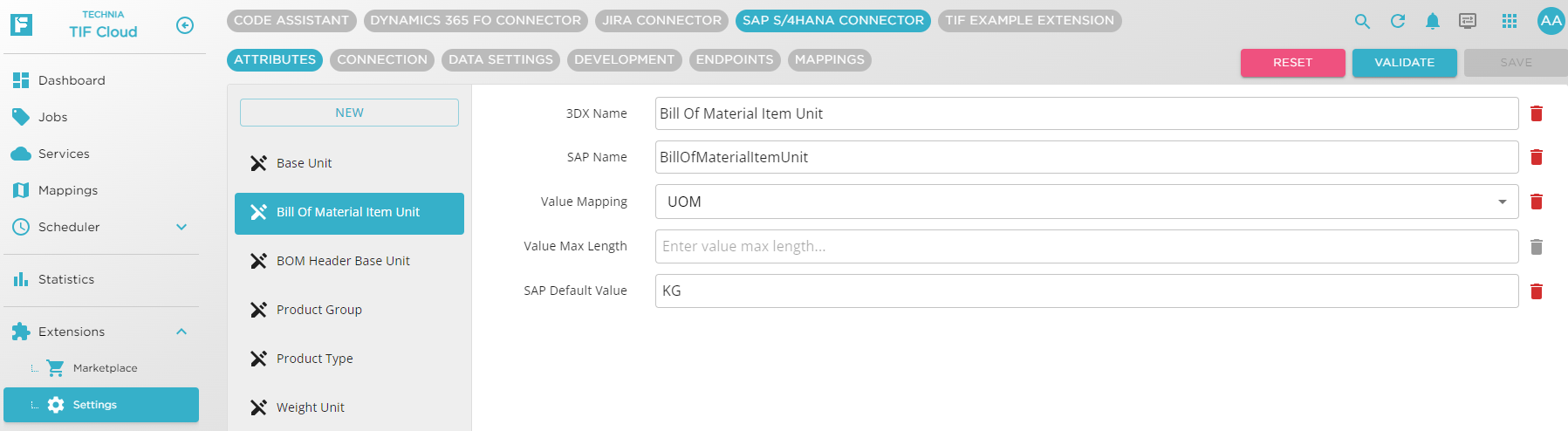

SAP S4HANA Extension Settings Attributes 2

ATTRIBUTES:Bill of Material Item Unit
3DX Name	Bill of Material Item Unit
SAP Name	BillOfMaterialItemUnit
Value Mapping	UOM
Value Max Length
SAP Default Value	KG

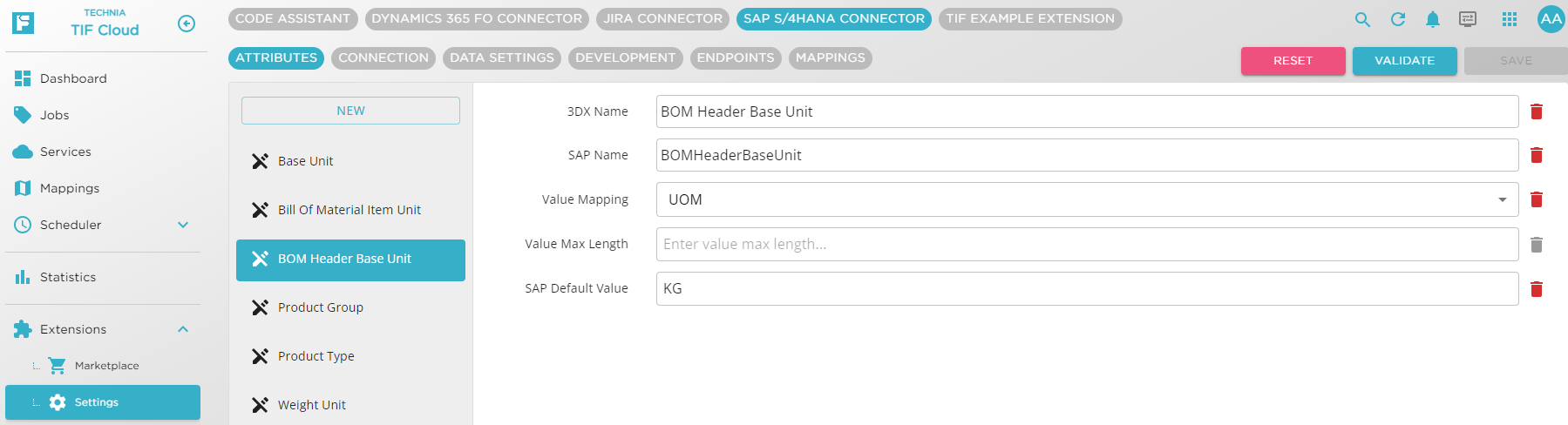

SAP S4HANA Extension Settings Attributes 3

ATTRIBUTES:BOM Header Base Unit
3DX Name	BOM Header Base Unit
SAP Name	BOMHeaderBaseUnit
Value Mapping	UOM
Value Max Length
SAP Default Value	KG

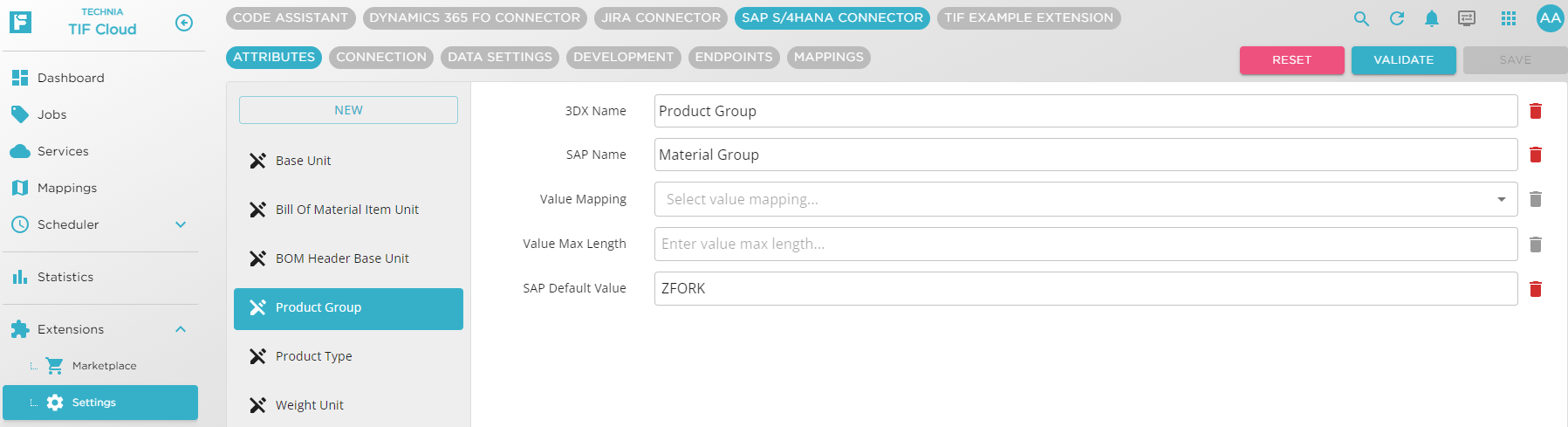

SAP S4HANA Extension Settings Attributes 4

ATTRIBUTES:Product Group
3DX Name	Product Group
SAP Name	Material Group
Value Mapping
Value Max Length
SAP Default Value	ZFORK

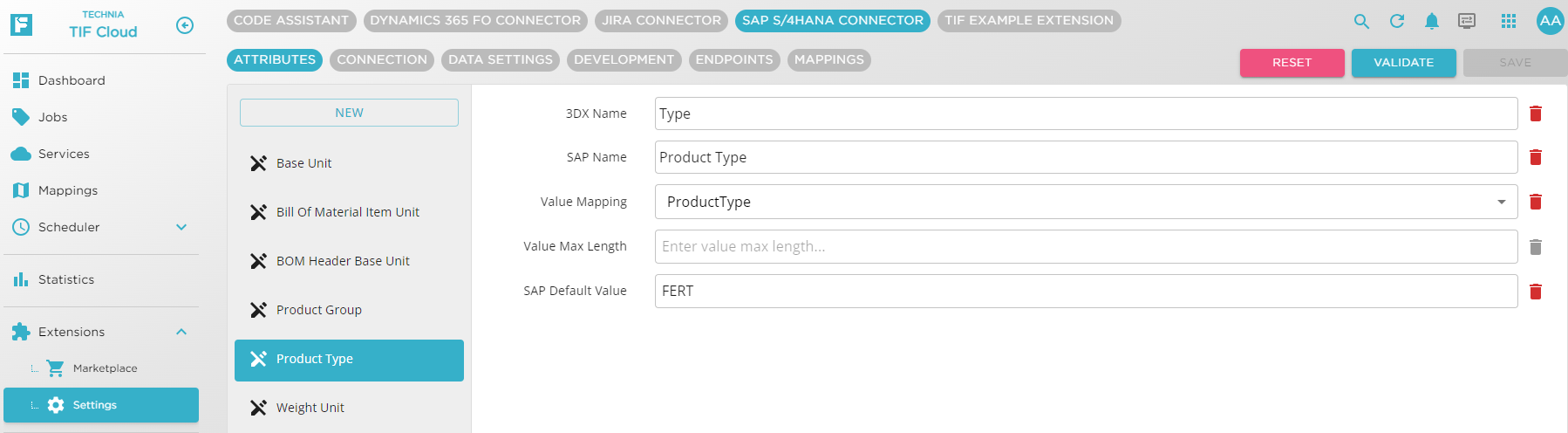

SAP S4HANA Extension Settings Attributes 5

ATTRIBUTES:Product Type
3DX Name	Type
SAP Name	Product Type
Value Mapping	ProductType
Value Max Length
SAP Default Value	FERT

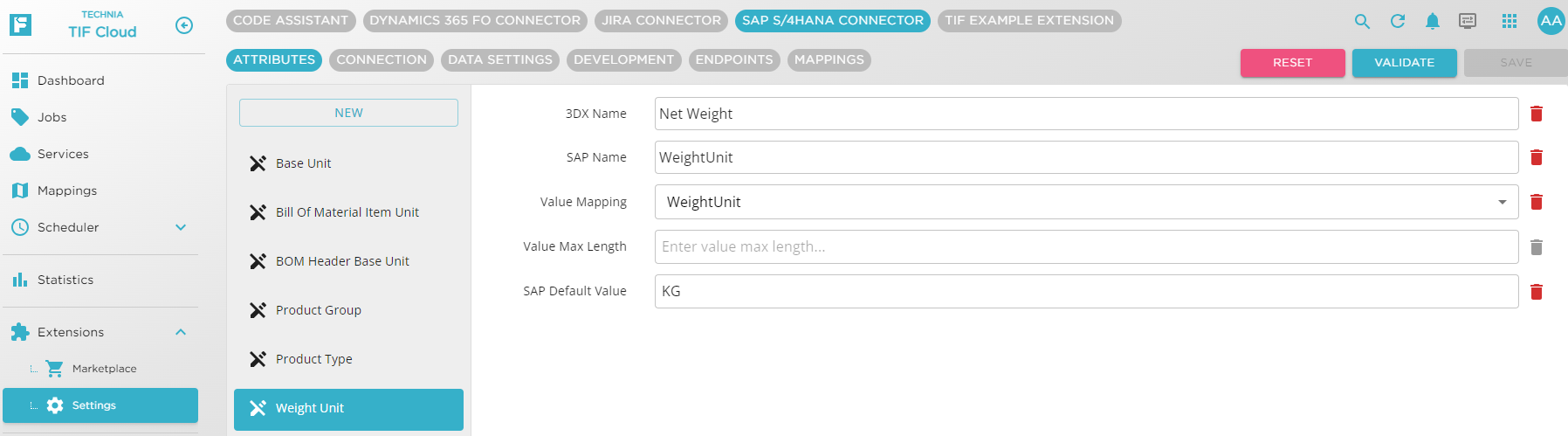

SAP S4HANA Extension Settings Attributes 6

ATTRIBUTES:Weight Unit
3DX Name	Net Weight
SAP Name	WeightUnit
Value Mapping	WeightUnit
Value Max Length
SAP Default Value	KG

2. MAPPINGS

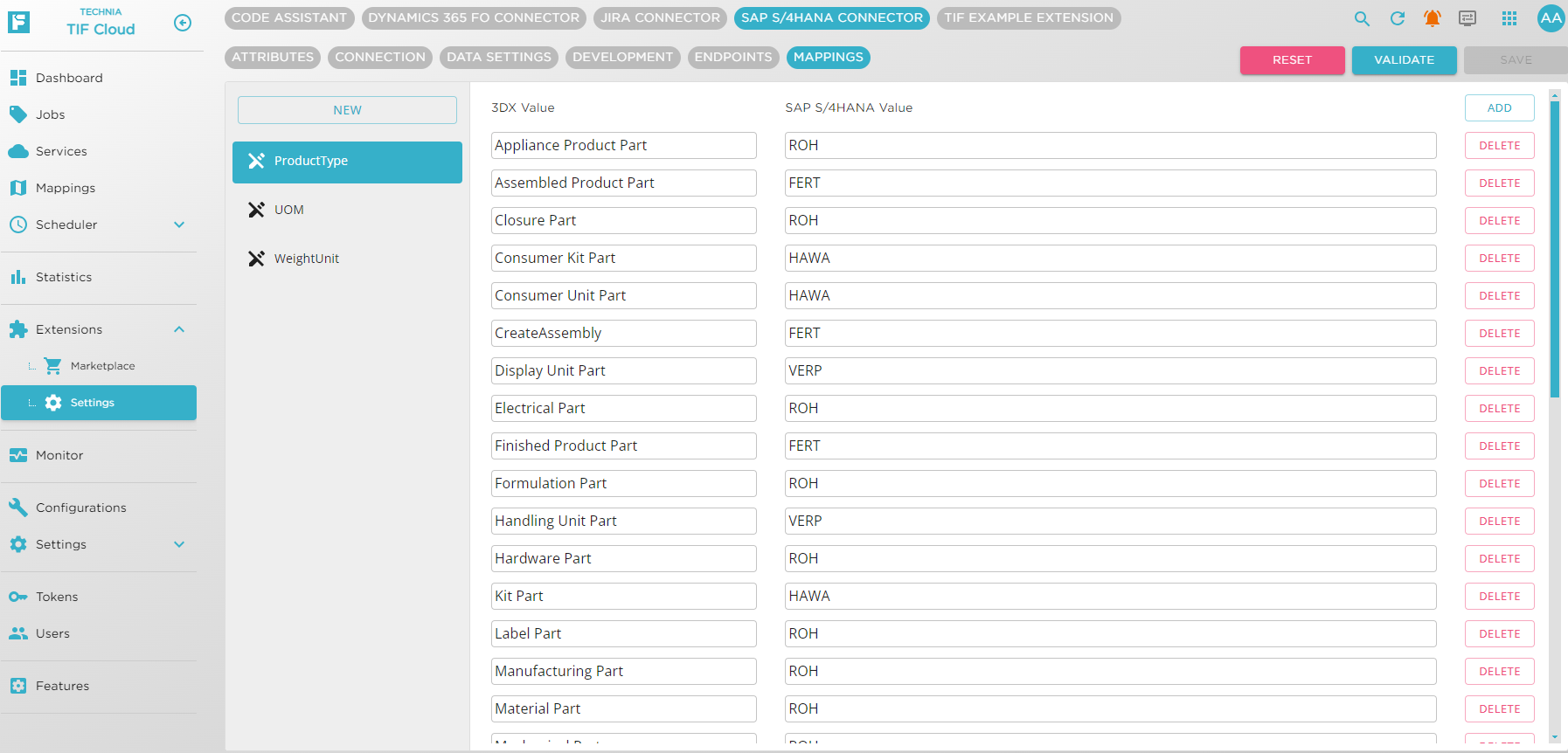

SAP S4HANA Extension Settings Mappings 1

MAPPINGS:ProductType
3DX Value	SAP S/4HANA Value
Appliance Product Part	ROH
Assembled Product Part	FERT
Closure Part	ROH
Consumer Kit Part	HAWA
Consumer Unit Part	HAWA
CreateAssembly	FERT
Display Unit Part	VERP
Electrical Part	ROH
Finished Product Part	FERT
Formulation Part	ROH
Handling Unit Part	VERP
Hardware Part	ROH
Kit Part	HAWA
Label Part	ROH
Manufacturing Part	ROH
Material Part	ROH
Mechanical Part	ROH
Packaging Assembly Part	VERP
Packaging Component Part	VERP
Packaging Material Part	VERP
Pallet Part	VERP
Part	ROH
Phantom Part	ROH
Product Data Part	ROH
Promotional Item	UNBW
Raw Material	ROH
Semi-Finished Product Part	HALB
Software Part	ROH
Supplier Equivalent Part	ROH
Support Part	DIEN
Synthetic Part	ROH
Tool Part	FHMI
Trade Unit Part	HAWA
Transport Unit Part	VERP
VPMReference	ROH
XBOM Kit Part	HAWA

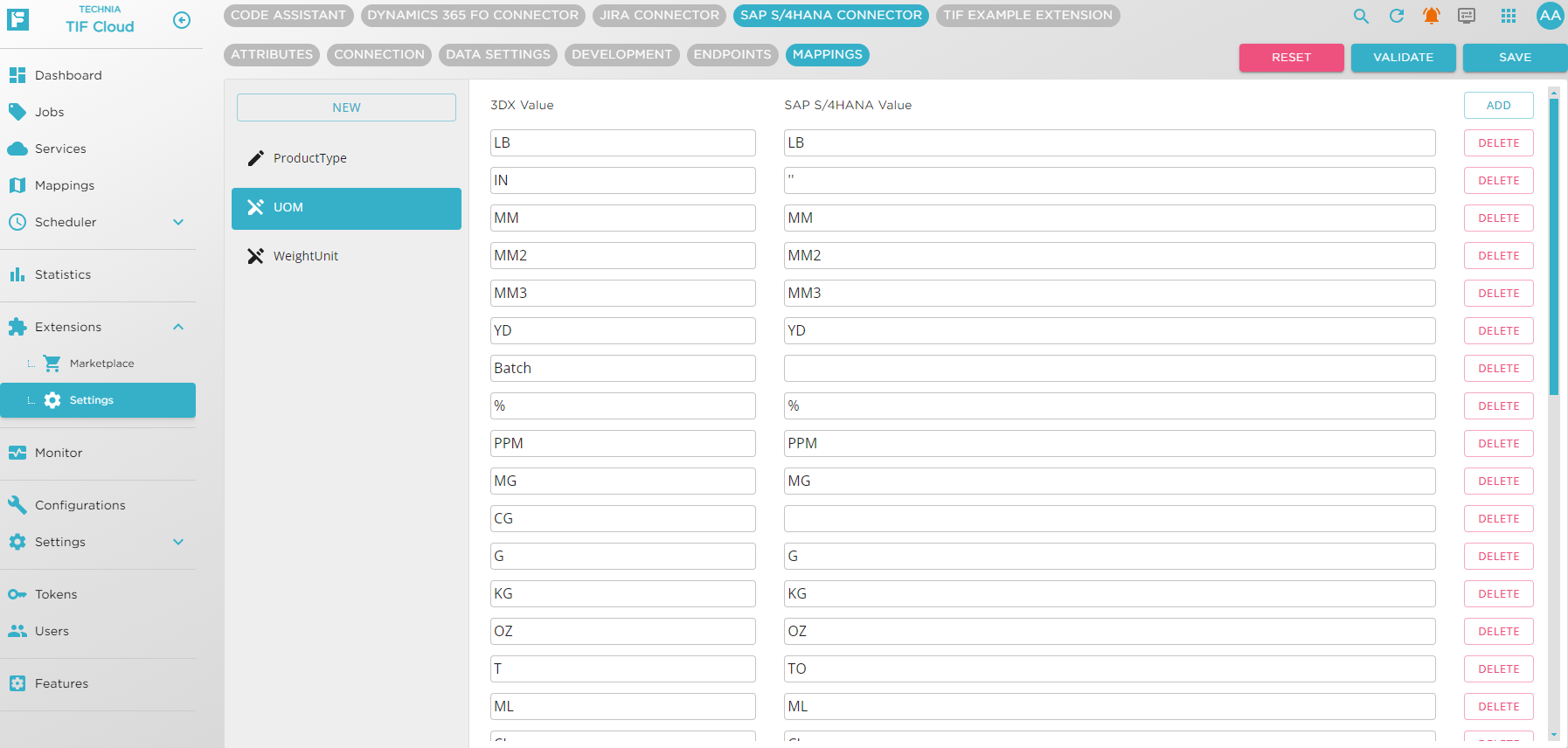

SAP S4HANA Extension Settings Mappings 2

MAPPINGS:UOM
3DX Value	SAP S/4HANA Value
LB	LB
IN	''
MM	MM
MM2	MM2
MM3	MM3
YD	YD
Batch
%	%
PPM	PPM
MG	MG
CG
G	G
KG	KG
OZ	OZ
T	TO
ML	ML
CL	CL
GA	GAL
PT	PT
QT	QT
CONE
GR	GRO
ROLL	ROL
FT	FT
EA	EA
CM	CM
CM2	CM2
CM3	CCM
FT2	FT2
FT3	FT3
IN2	\|2
IN3	\|3
LITER	L
M	M
M2	M2
M3	M3

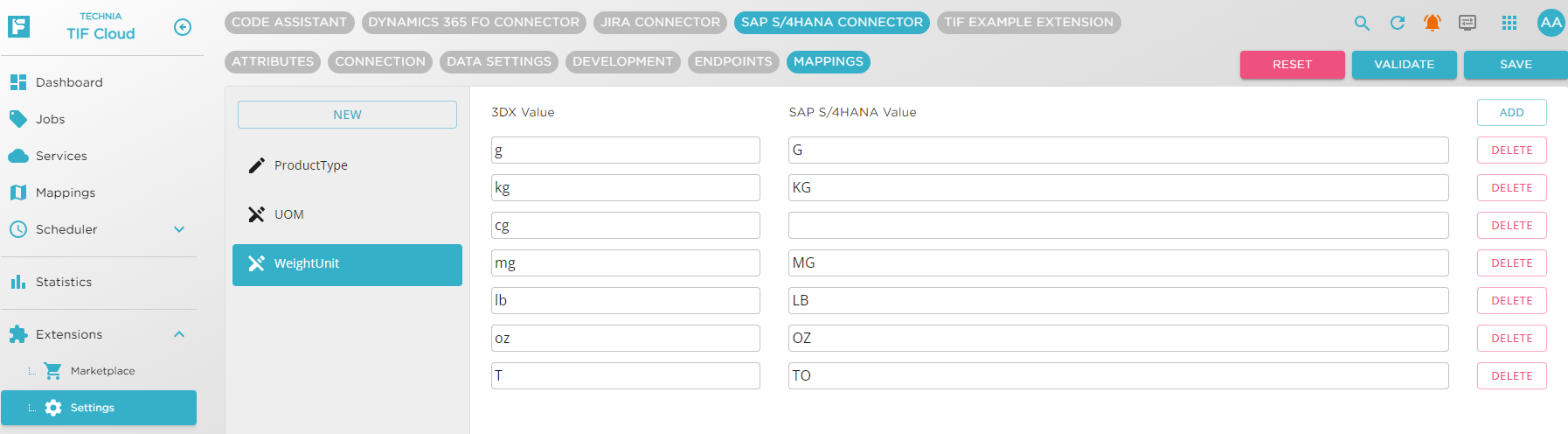

SAP S4HANA Extension Settings Mappings 3

MAPPINGS:WeightUnit
3DX Value	SAP S/4HANA Value
g	G
kg	KG
cg
mg	MG
lb	LB
oz	OZ
T	TO

Connection

This tab allows user to configure the properties required for communication between 3DEXPERIENCE and SAP S/4HANA.

3. CONNECTION

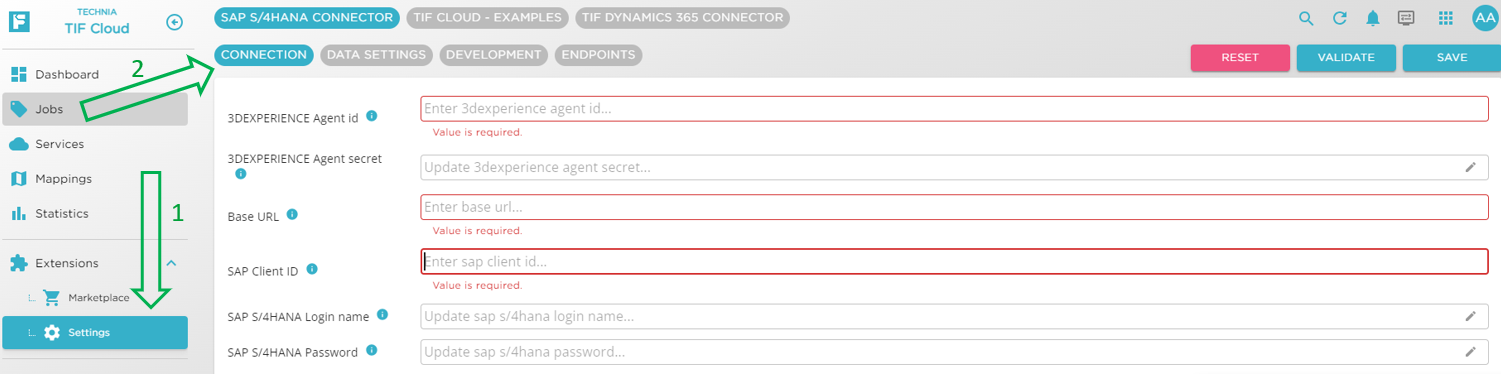

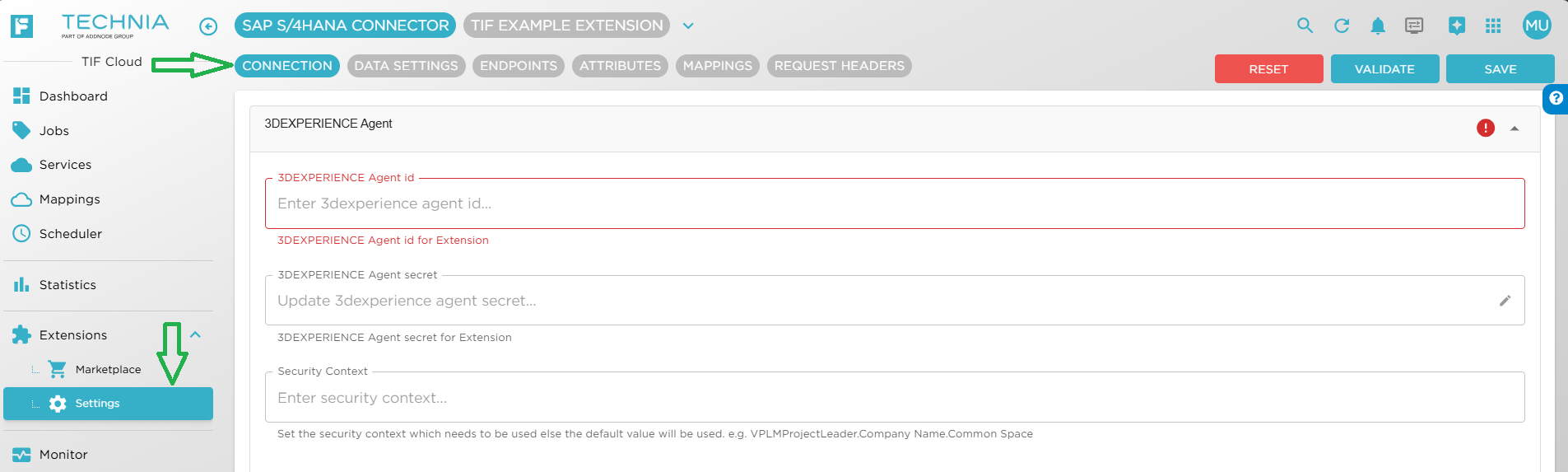

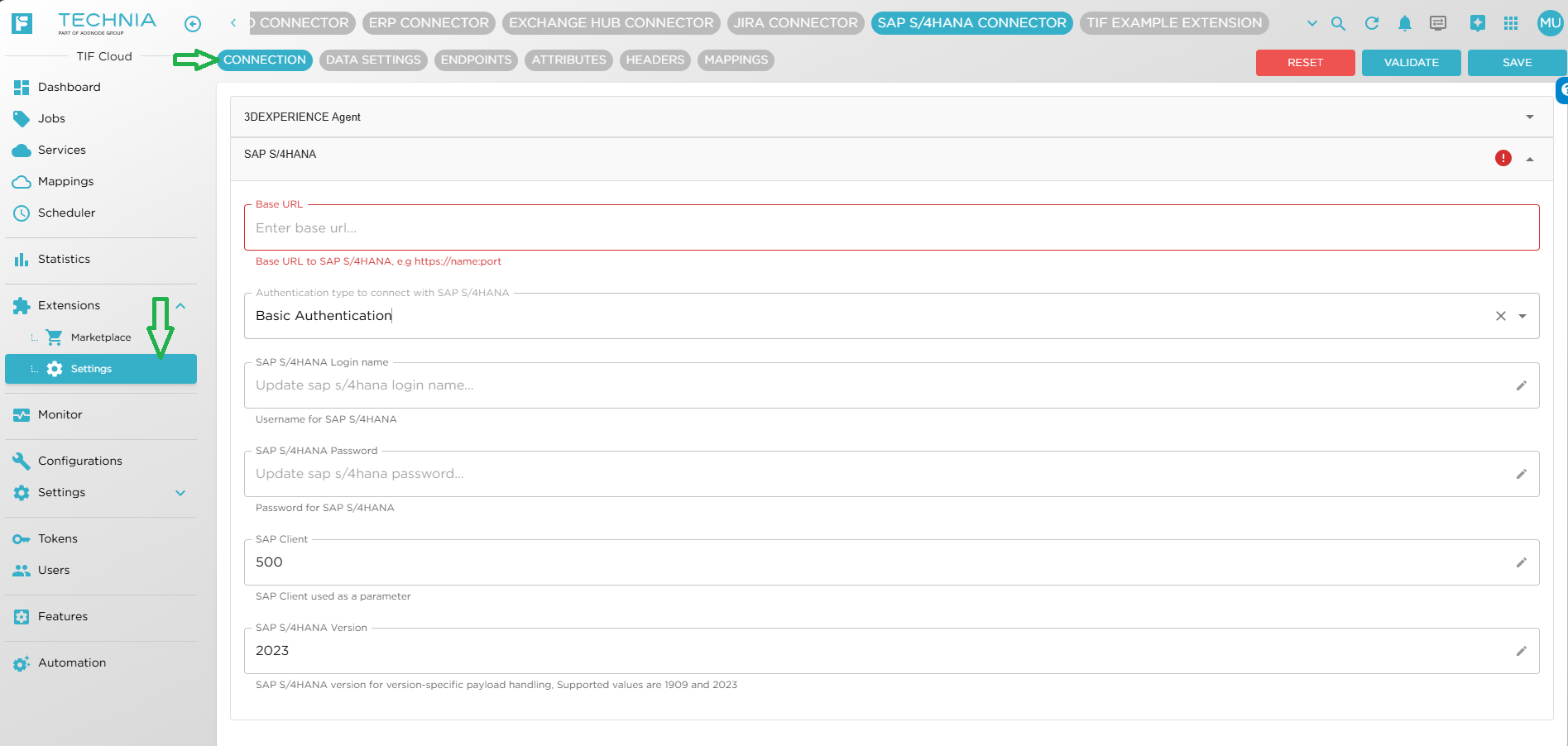

SAP S4HANA Extension Settings Connection

Variable	Description	Example
3DEXPERIENCE Agent id	3DEXPERIENCE Agent id for Extension
3DEXPERIENCE Agent secret	3DEXPERIENCE Agent secret for Extension
Base URL to SAP	Base url of SAP S/4HANA	https://<host address>
Security Context	Security context to be used else default from 3DExperience will be used	VPLMProjectLeader.Company Name.Common Space
SAP Client ID	Client id of SAP S/4HANA	500
SAP S/4HANA Login name	User name to login to SAP S/4HANA
SAP S/4HANA Password	Password for the user name
SAP S/4HANA Version	SAP S/4HANA Version for version-specific payload handling	2023 or 1909

Variable

Description

Example

3DEXPERIENCE Agent id

3DEXPERIENCE Agent id for Extension

3DEXPERIENCE Agent secret

3DEXPERIENCE Agent secret for Extension

Base URL to SAP

Base url of SAP S/4HANA

https://<host address>

Security Context

Security context to be used else default from 3DExperience will be used

VPLMProjectLeader.Company Name.Common Space

SAP Client ID

Client id of SAP S/4HANA

500

SAP S/4HANA Login name

User name to login to SAP S/4HANA

SAP S/4HANA Password

Password for the user name

SAP S/4HANA Version

SAP S/4HANA Version for version-specific payload handling

2023 or 1909

Regex won’t work with security context. Actual value is to be used.

Data Settings

This tab allows user to configure the properties that help in generating payload.

4. DATA SETTINGS

The below shown values are from a demo point of view.

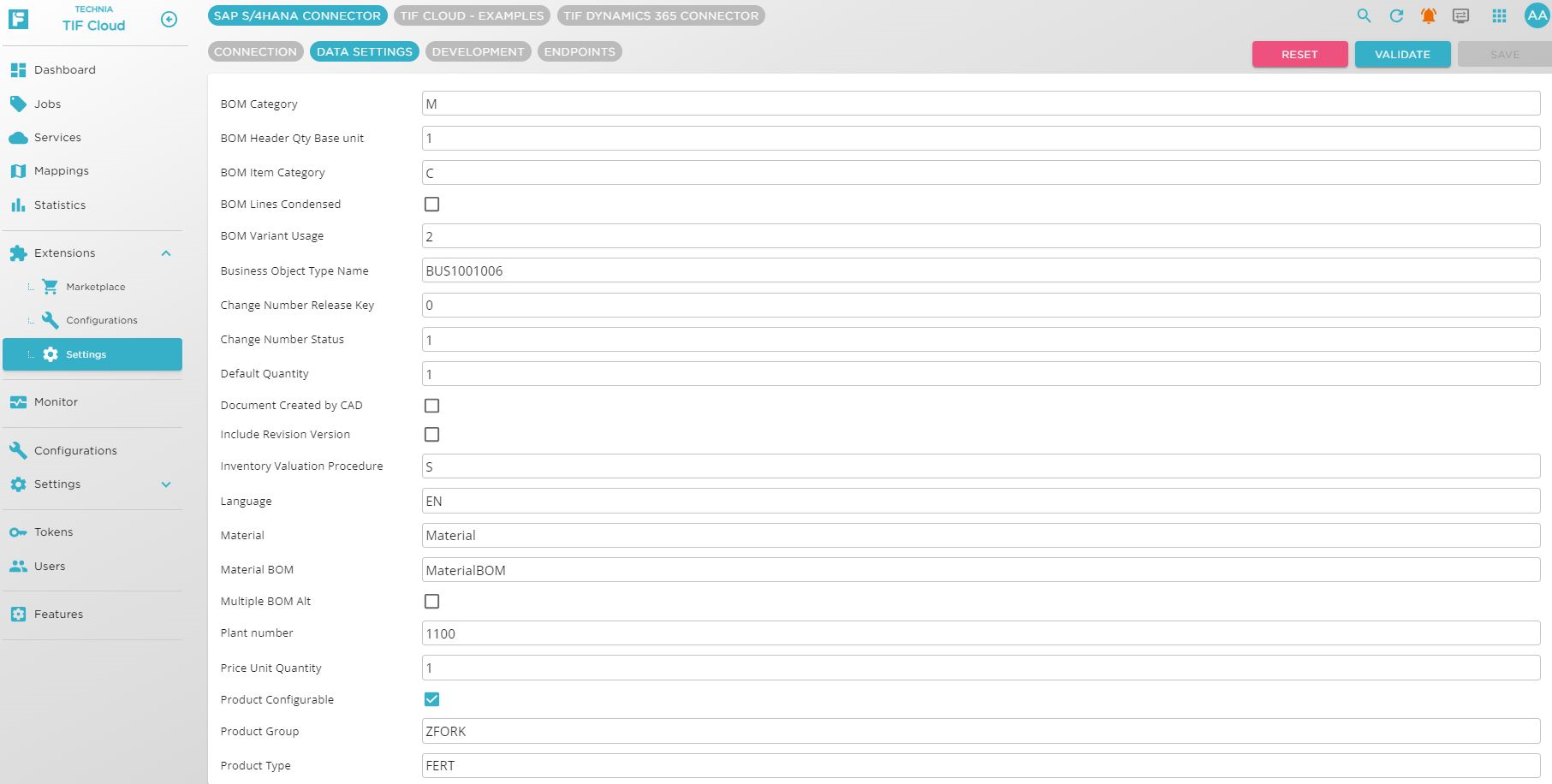

SAP S4HANA Extension Settings Data Settings

Common Data Settings

Variable	Description	Example
3DSpace tenant	Url for 3DSpace tenant	https://<host address>
BOM Line Condensed	-	true
Default Quantity	Single item quantity	1
Document Created by CAD	-	false
Include Revision Version	Example; A.1	false
Industry Sector	-	M
Inventory Valuation Procedure	-	S
Language	EN = English	EN
Plant number	-	1100
Price Unit Quantity	-	1
Product Configurable	-	true
Valuation class for FERT	Valuation class for product type FERT at SAP S/4HANA	7920
Valuation class for ROH	Valuation class for product type ROH at SAP S/4HANA	3000

Variable

Description

Example

3DSpace tenant

Url for 3DSpace tenant

https://<host address>

BOM Line Condensed

true

Default Quantity

Single item quantity

Document Created by CAD

false

Include Revision Version

Example; A.1

false

Industry Sector

Inventory Valuation Procedure

Language

EN = English

Plant number

1100

Price Unit Quantity

Product Configurable

true

Valuation class for FERT

Valuation class for product type FERT at SAP S/4HANA

7920

Valuation class for ROH

Valuation class for product type ROH at SAP S/4HANA

3000

BOM

Variable	Description	Example
BOM Category	-	M
BOM Header Qty Baseunit	-	1
BOM Item Category	-	C
BOM Variant Usage	2 = Engineering BOM, Default = 2	2
Multiple BOM Alt		false

Variable

Description

Example

BOM Category

BOM Header Qty Baseunit

BOM Item Category

BOM Variant Usage

2 = Engineering BOM, Default = 2

Multiple BOM Alt

false

Change

Variable	Description	Example
Change Number Release Key	-	0
Change Number Status	-	1
Material	SAP Object Type	Material
Material BOM	SAP Object Type	MaterialBOM

Variable

Description

Example

Change Number Release Key

Change Number Status

Material

SAP Object Type

Material

Material BOM

SAP Object Type

MaterialBOM

Document

Variable	Description	Example
Attachment type code for document	Mode of sending document to SAP S/4HANA	URL / FILE
Business Object Type Name		BUS1001006
Convert document to PDF	Convert Microsoft Office documents to PDF format before transmitting them as files to SAP S/4HANA.	false
File Download URL	URL to download file when attachment type code is URL	${sap.s4hana.3dspace.tenant}/#app:ENXWDOC_AP/content:X3DContentId=

Variable

Description

Example

Attachment type code for document

Mode of sending document to SAP S/4HANA

URL / FILE

Business Object Type Name

BUS1001006

Convert document to PDF

Convert Microsoft Office documents to PDF format before transmitting them as files to SAP S/4HANA.

false

File Download URL

URL to download file when attachment type code is URL

${sap.s4hana.3dspace.tenant}/#app:ENXWDOC_AP/content:X3DContentId=

MBOM

Variable	Description	Example
MBOM Variant Usage	1 = Production BOM, Default = 1	1

Variable

Description

Example

MBOM Variant Usage

1 = Production BOM, Default = 1

BOP Resources

Variable	Description	Example
Work Center Category Code	Category code to push 3DX resource to SAP	0001
Bulkfetch Batch Size limit	Max resource records per batch when fetching from SAP	20
Capacity Internal ID	Internal ID for capacity	0
WorkCenter Is To Be Deleted	Mark resource for deletion	false
Validity Start Date	Resource validity start date	2024-12-31
Validity End Date	Resource validity end date	9999-12-31
Standard Work Formula Param Group	Parameter group for standard work formula	SAP1
Marked Backflush	Material component is marked for backflush	false

Variable

Description

Example

Work Center Category Code

Category code to push 3DX resource to SAP

0001

Bulkfetch Batch Size limit

Max resource records per batch when fetching from SAP

Capacity Internal ID

Internal ID for capacity

WorkCenter Is To Be Deleted

Mark resource for deletion

false

Validity Start Date

Resource validity start date

2024-12-31

Validity End Date

Resource validity end date

9999-12-31

Standard Work Formula Param Group

Parameter group for standard work formula

SAP1

Marked Backflush

Material component is marked for backflush

false

Bill of Process(BOP)

Variable	Description	Example
Starting Operation Sequence	BOP operations’ starting sequence number	100
BillOfOperations Status	BOP status	1
BillOfOperations Usage	BOP usage type	1
Responsible Planner Group	Planner group for the operation	01
Minimum Lot Size Quantity	-	1
Maximum Lot Size Quantity	-	999999
Sequence Category	Sequence category ID	0
Operation Control Profile	Operation control profile ID	YBM1
Operation Unit	Unit of measure for operation	EA
OpQty to BaseQty Numerator	Numerator for operation quantity conversion	1
OpQty to BaseQty Denominator	Denominator for operation quantity conversion	1
Operation Reference Quantity	Quantity for operation reference	1

Variable

Description

Example

Starting Operation Sequence

BOP operations’ starting sequence number

100

BillOfOperations Status

BOP status

BillOfOperations Usage

BOP usage type

Responsible Planner Group

Planner group for the operation

Minimum Lot Size Quantity

Maximum Lot Size Quantity

999999

Sequence Category

Sequence category ID

Operation Control Profile

Operation control profile ID

YBM1

Operation Unit

Unit of measure for operation

OpQty to BaseQty Numerator

Numerator for operation quantity conversion

OpQty to BaseQty Denominator

Denominator for operation quantity conversion

Operation Reference Quantity

Quantity for operation reference

BOP Product Version

Variable	Description	Example
BillOfOperations Type	Production version operation type	N
UsgeProblty With Vers Ctrl In Pct	Usage probability with version control	0
Material Base Unit	Base unit of measure for the material	EA
Material Min. Qty	Minimum material quantity	0
Material Max. Qty	Maximum material quantity	99999999
Cost Lot Size	Costing lot size for production version	0
MRP Controller	MRP controller for production version	THK
MRP Responsible	MRP responsible person	THK
Routing Status Text	Routing check status text	Not yet checked
Version Lock Text	Lock text for the version	Not locked

Variable

Description

Example

BillOfOperations Type

Production version operation type

UsgeProblty With Vers Ctrl In Pct

Usage probability with version control

Material Base Unit

Base unit of measure for the material

Material Min. Qty

Minimum material quantity

Material Max. Qty

Maximum material quantity

99999999

Cost Lot Size

Costing lot size for production version

MRP Controller

MRP controller for production version

THK

MRP Responsible

MRP responsible person

THK

Routing Status Text

Routing check status text

Not yet checked

Version Lock Text

Lock text for the version

Not locked

5. DEVELOPMENT

As of release V1 , the DEVELOPMENT tab is meant for development environment. It is used to generate Item numbers and Change Action numbers as required by the destination system (SAP S/4HANA).

Endpoints

This tab allows user to configure the endpoints where payload needs to be sent at SAP S/4HANA.

6. ENDPOINTS

Change, Attachment & Material

Variable	Description	Example
BOM URI	SAP S/4HANA API used to send payload for Send BOM & Send BOM with CA use case	sap/API_BILL_OF_MATERIAL_SRV;v=2/MaterialBOM
CA URI	SAP S/4HANA API used to send payload for Send CA use case	sap/opu/odata/sap/API_CHANGEMASTER;v=2/A_ChangeMaster
Item Revise URI	SAP S/4HANA API used to send payload for Revise Engineering Item use case	sap/opu/odata/sap/API_PRODUCT_SRV/A_Product('<ITEM_NAME>')
Material CA URI	SAP S/4HANA API used to send payload for Associate CA use case	sap/opu/odata/sap/API_CHANGEMASTER; v=2/('<CA_NUMBER>')/to_ChangeMstrObMgReMaterial
Product URI	SAP S/4HANA API used to send payload for Send Engineering Item use case	sap/opu/odata/sap/API_PRODUCT_SRV/A_Product
Send Attachment as Link URI	SAP S/4HANA API used to send attachment as link for Send Document use case	/sap/opu/odata/sap/API_CV_ATTACHMENT_SRV/CreateUrlAsAttachment? MIMEType='${MIME_TYPE}'&UrlDescription='${URL_DESC}'& Url='${DOC_LINK}'&BusinessObjectTypeName='${BUS_OBJ_TYPE} '&LinkedSAPObjectKey='${SAP_OBJ_KEY}'&SemanticObject=''
Send Attachment URI	SAP S/4HANA API used to send attachment for Send Document use case	sap/opu/odata/sap/API_CV_ATTACHMENT_SRV/AttachmentContentSet
Send Description URI	SAP S/4HANA API used to payload for Send Product Description use case	/sap/opu/odata/sap/API_PRODUCT_SRV/A_ProductDescription( Product='${ITEM_NAME}',Language='${LANGUAGE}')
Send Basic Text URI	SAP S/4HANA API used to payload for Send Basic Text use case	/sap/opu/odata/sap/API_PRODUCT_SRV/A_ProductBasicText (Product='${ITEM_NAME}',Language='${LANGUAGE}')
Send Attributes URI	SAP S/4HANA API used to send payload for syncing attributes (Net Weight, Weight Unit) for Send Engineering Material Attributes use case	/sap/opu/odata/sap/API_PRODUCT_SRV/A_Product('${ITEM_NAME}')
Token URI Endpoint	SAP S/4HANA API to fetch the token	sap/opu/odata/sap/API_PRODUCT_SRV/

Variable

Description

Example

BOM URI

SAP S/4HANA API used to send payload for Send BOM & Send BOM with CA use case

sap/API_BILL_OF_MATERIAL_SRV;v=2/MaterialBOM

CA URI

SAP S/4HANA API used to send payload for Send CA use case

sap/opu/odata/sap/API_CHANGEMASTER;v=2/A_ChangeMaster

Item Revise URI

SAP S/4HANA API used to send payload for Revise Engineering Item use case

sap/opu/odata/sap/API_PRODUCT_SRV/A_Product('<ITEM_NAME>')

Material CA URI

SAP S/4HANA API used to send payload for Associate CA use case

sap/opu/odata/sap/API_CHANGEMASTER; v=2/('<CA_NUMBER>')/to_ChangeMstrObMgReMaterial

Product URI

SAP S/4HANA API used to send payload for Send Engineering Item use case

sap/opu/odata/sap/API_PRODUCT_SRV/A_Product

Send Attachment as Link URI

SAP S/4HANA API used to send attachment as link for Send Document use case

/sap/opu/odata/sap/API_CV_ATTACHMENT_SRV/CreateUrlAsAttachment? MIMEType='${MIME_TYPE}'&UrlDescription='${URL_DESC}'& Url='${DOC_LINK}'&BusinessObjectTypeName='${BUS_OBJ_TYPE} '&LinkedSAPObjectKey='${SAP_OBJ_KEY}'&SemanticObject=''

Send Attachment URI

SAP S/4HANA API used to send attachment for Send Document use case

sap/opu/odata/sap/API_CV_ATTACHMENT_SRV/AttachmentContentSet

Send Description URI

SAP S/4HANA API used to payload for Send Product Description use case

/sap/opu/odata/sap/API_PRODUCT_SRV/A_ProductDescription( Product='${ITEM_NAME}',Language='${LANGUAGE}')

Send Basic Text URI

SAP S/4HANA API used to payload for Send Basic Text use case

/sap/opu/odata/sap/API_PRODUCT_SRV/A_ProductBasicText (Product='${ITEM_NAME}',Language='${LANGUAGE}')

Send Attributes URI

SAP S/4HANA API used to send payload for syncing attributes (Net Weight, Weight Unit) for Send Engineering Material Attributes use case

/sap/opu/odata/sap/API_PRODUCT_SRV/A_Product('${ITEM_NAME}')

Token URI Endpoint

SAP S/4HANA API to fetch the token

sap/opu/odata/sap/API_PRODUCT_SRV/

Resource of Bill Of Process (BOP)

Variable	Description	Example
Send workcenter URI	URI to send BOP resource item	/sap/opu/odata4/sap/api_work_center/srvd_a2x/sap/workcenter/ ${WORKCENTER_CODE}/WorkCenterHeader
Fetch Resource detail URI	URI to fetch Resource details from 3dx	/resources/v1/modeler/dsrsc/dsrsc:Resource/${RESOURCE_ID}? $mask=dsmvrsc:ResourceMask.Details

Variable

Description

Example

Send workcenter URI

URI to send BOP resource item

/sap/opu/odata4/sap/api_work_center/srvd_a2x/sap/workcenter/ ${WORKCENTER_CODE}/WorkCenterHeader

Fetch Resource detail URI

URI to fetch Resource details from 3dx

/resources/v1/modeler/dsrsc/dsrsc:Resource/${RESOURCE_ID}? $mask=dsmvrsc:ResourceMask.Details

Bill Of Process (BOP)

Variable	Description	Example
Send BOP URI	URI to send BOP to SAP	/sap/opu/odata/sap/API_PRODUCTION_ROUTING/ProductionRoutingHeader
Fetch WorkCenterInternalID URI	URI to fetch the WorkCenterInternalID by the work center and plant from SAP	/sap/opu/odata4/sap/api_work_center/srvd_a2x/sap/workcenter/ ${WORKCENTER_CODE}/WorkCenterHeader?$filter=${FILTER} and Plant eq '${PLANT}'&$select=Plant,WorkCenterInternalID,WorkCenter
Fetch 3dx BOP URI	URI to bulk fetch the Resource items from 3dx	/resources/v1/modeler/dsrsc/dsrsc:Resource/bulkfetch
Fetch 3dx BOP URI	URI to fetch the bill of process from 3dx	/resources/v1/modeler/dsprcs/dsprcs:MfgProcess/${OBJ_ID}? $mask=dsprcs:MfgProcessMask.Structure.ModelView.Index

Variable

Description

Example

Send BOP URI

URI to send BOP to SAP

/sap/opu/odata/sap/API_PRODUCTION_ROUTING/ProductionRoutingHeader

Fetch WorkCenterInternalID URI

URI to fetch the WorkCenterInternalID by the work center and plant from SAP

/sap/opu/odata4/sap/api_work_center/srvd_a2x/sap/workcenter/ ${WORKCENTER_CODE}/WorkCenterHeader?$filter=${FILTER} and Plant eq '${PLANT}'&$select=Plant,WorkCenterInternalID,WorkCenter

Fetch 3dx BOP URI

URI to bulk fetch the Resource items from 3dx

/resources/v1/modeler/dsrsc/dsrsc:Resource/bulkfetch

Fetch 3dx BOP URI

URI to fetch the bill of process from 3dx

/resources/v1/modeler/dsprcs/dsprcs:MfgProcess/${OBJ_ID}? $mask=dsprcs:MfgProcessMask.Structure.ModelView.Index

BOP Product Version

Variable	Description	Example
Send BOP Product version URI	URI to send Product version for the BOP sent to SAP	/sap/opu/odata4/sap/api_production_version/srvd_a2x/sap/ productionversion/${WORKCENTER_CODE}/ProductionVersion

Variable

Description

Example

Send BOP Product version URI

URI to send Product version for the BOP sent to SAP

/sap/opu/odata4/sap/api_production_version/srvd_a2x/sap/ productionversion/${WORKCENTER_CODE}/ProductionVersion

SAP S/4HANA service is available out of the box. This SAP S/4HANA service is mapped with the events under event mapping.
As of release 2.0.0 , additional services are available out of the box.
- SAP S/4HANA Release
- SAP S/4HANA Revise
- A Service corresponds to a job queue. Every event mapping needs to specify to which service it belongs. A service can be configured to run its jobs in sequence OR parallel execution. Either create a single service to handle all the events or create separate services for each event mapping.

Event Mapping

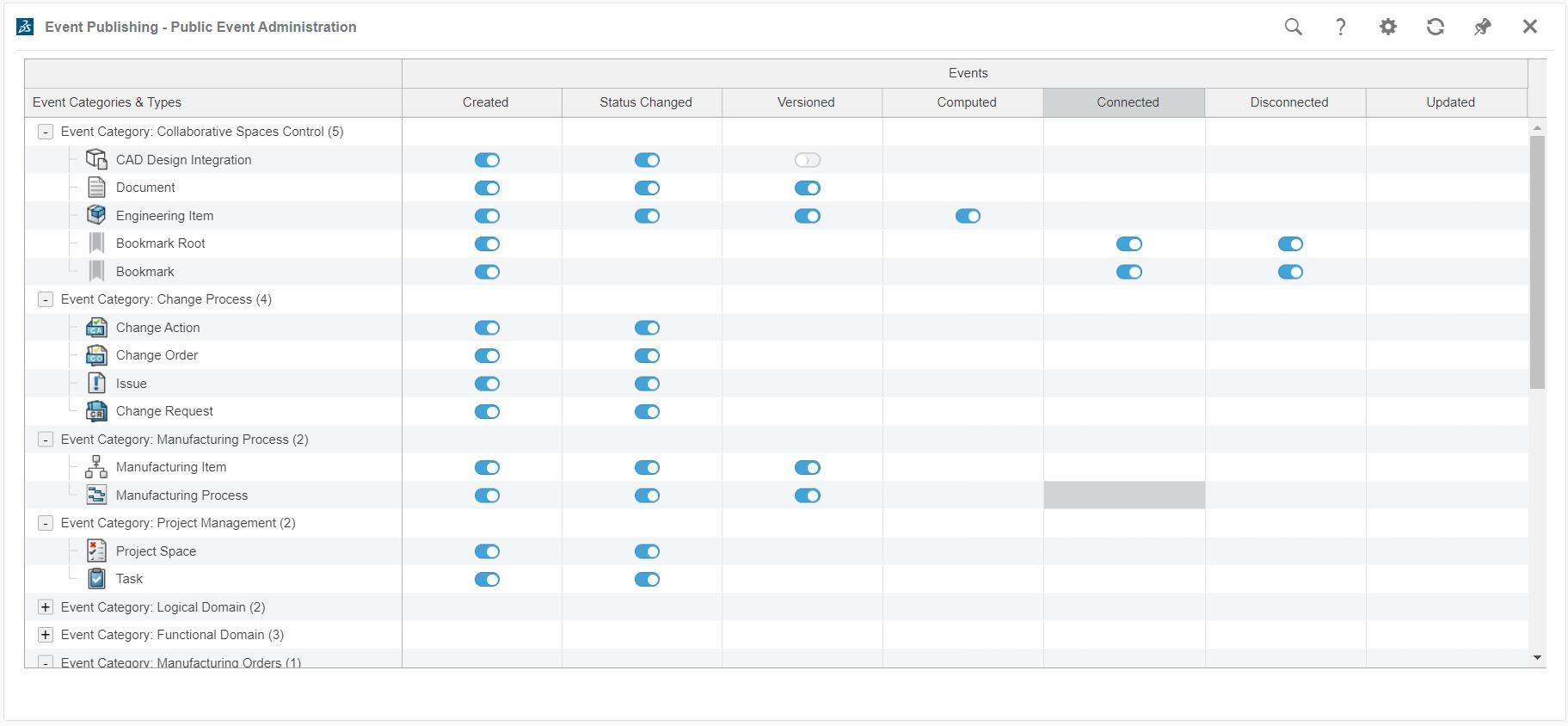

Need to enable what events needs to be published from the DS tenant using Event Publishing app.
- Event mapping holds the information about which use-case needs to be executed when the event is received. It is a binding between the event and job-request.

Example for configured events publishing are as follows
Engineering item → Created, Status Changed, Versioned, etc…

Event mapping need to be created so that required use case should get executed on receiving the event from DS tenant. While creating the events we need to provide the details like
- Service name
- Agent
- Event class and its type
- Configuration to be invoked
Following event mapping is available out of the box.

Events

Event Categories & Types

Created

Status Changed

Versioned

Computed

Connected

Disconnected

⊟ Event Category :
Collaborative Spaces Control

├ 🗎 Document

├ 🧊 Engineering Item

├ Manufacturing Item icon Manufacturing Item

├ Manufacturing Resource BOP Resource

├ Manufacturing Process icon Bill Of Process(BOP)

🔵

⊟ Event Category : Change
Process

├ 🄲🄰 Change Action

🔵

SAP-S/4HANA-Create-Eng-Material-Send-Eng-Material - gets invoked on creation of an Engineering item in DS tenant.
SAP-S/4HANA-Send-CA - gets invoked on creation of Change Action in DS tenant.
SAP-S/4HANA-Send-BOM - gets invoked on release of an Engineering item in DS tenant.
SAP-S/4HANA-Release-CA-Send-BOM - gets invoked on release of a Change Action in DS tenant.
SAP-S/4HANA-Revise-Engineering-Item - gets invoked on creation of revision of an Engineering item in DS tenant.
SAP-S/4HANA-Send-Document - gets invoked on release of an Engineering item in DS tenant.
SAP-S/4HANA-Sync-Attributes - gets invoked on release of an Engineering item in DS tenant.
SAP-S/4HANA-Send-Description - gets invoked on creation of revision of an Engineering item in DS tenant.
SAP-S/4HANA-Send-Basic-Text - gets invoked on creation of revision of an Engineering item in DS tenant.
SAP-S/4HANA-Send-Manufacturing-Item - gets invoked on creation of a Manufacturing item in DS tenant.
SAP-S/4HANA-Send-MBOM - gets invoked on release of a Manufacturing item in DS tenant.
SAP-S/4HANA-Send-Resource - gets invoked on promoting the Resource Item to FROZEN in the DS tenant.
SAP-S/4HANA-Send-BOP - gets invoked on promoting the Workplan object known as Bill Of Process(BOP) to FROZEN in the DS tenant.

SAP S/4HANA use cases use token to connect to the destination url for sending the payload.

In general, any SAP S/4HANA use case, use the below javascript classes.

Component	Details
1. Use case invoker	It invokes the processor of the specific use case. The invoker is also responsible to pass in the optional set of properties to the use case processor
2. Processor	It has the logic to fetch the data, build the payload and send it to SAP S/4HANA using the Destination Handler.
3. Token Resolver	It fetches the authentication token by connecting to the corresponding SAP S/4HANA url
4. Destination Handler	It has the logic to connect to the SAP S/4HANA urls by performing necessary actions and send the payload.
5. Logger	Logs the details of the items being accessed in the use case.
6. Helper	It has the methods to build the payload for SAP S/4HANA.
7. Util	It has the utility methods that helps to transform the payload data.

Component

Details

1. Use case invoker

It invokes the processor of the specific use case. The invoker is also responsible to pass in the optional set of properties to the use case processor

2. Processor

It has the logic to fetch the data, build the payload and send it to SAP S/4HANA using the Destination Handler.

3. Token Resolver

It fetches the authentication token by connecting to the corresponding SAP S/4HANA url

4. Destination Handler

It has the logic to connect to the SAP S/4HANA urls by performing necessary actions and send the payload.

5. Logger

Logs the details of the items being accessed in the use case.

6. Helper

It has the methods to build the payload for SAP S/4HANA.

7. Util

It has the utility methods that helps to transform the payload data.
